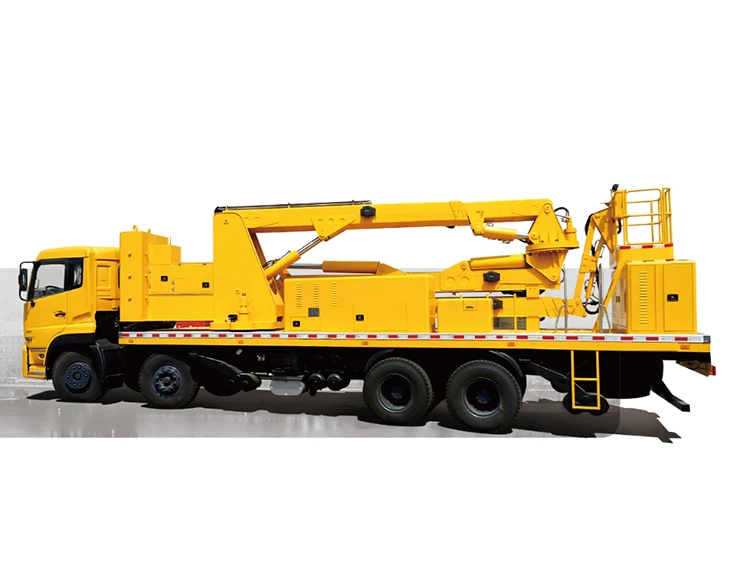

18m Bucket Type Bridge Inspection Unit

BRIEF

The bridge inspection CSCTRUCK is a specialized vehicle designed to facilitate inspection and maintenance tasks on bridges. The bucket truck comes equipped with bridge detection equipment and offers a versatile working platform that enables professionals to access any position on, under, or behind the bridge pier.

This model of the bucket truck is 18m in length and features a bucket-type design that provides exceptional working reach capacity. Its hydraulic, electrical, and control systems are integrated with advanced technologies, making it highly reliable and stable for intricate bridge maintenance, repair, and inspection processes. Additionally, the 18m bucket-type bridge inspection unit is available in different ranges for delivery worldwide. Welcome to inquiry!

FEATURES

Standard Features:

1. The electro-hydraulic proportional control valve is imported and has a strong anti-pollution ability, sensitive response, and excellent proportional performance.
2. The monitoring system is imported and can monitor the operation status under the bridge from the cab. It also records maintenance data for analysis and filing.
3. The balance valve is imported and ensures smooth and safe operation with platform hydraulic servo leveling.
4. The remote control system is imported and is simple and comfortable to operate. It realizes stable and reliable wireless and wired control.
5. The dual power system is safer and more convenient with a backup generator that provides power in case of engine failure. It also powers bridge maintenance tools.
6. The load limit system monitors the load of the platform in real-time, sends an alarm for overload, and locks related dangerous operations to ensure the safety of detection operations.
7. The wheeled outrigger design not only stabilizes the bucket truck but also enables the vehicle to move in the middle of the underbridge working process, greatly improving efficiency and productivity.
8. The retractable counterweight ensures stability in the working state and balances the load pressure on the rear axle, prolonging the service life of the chassis.

Optional Features:

1. A toolbox
2. A rear counterweight
3. LED work lights
4. Side and rear protection style
5. A high-roof cab
6. A sprinkler system
7. The wheeled outrigger position.

SPECIFICATION



Model	BIU18ZZ340L6
Chassis	Sinotruk TX 8X4Drive LHD; Sinotruk MC07.34-60 diesel engine; Sinotruk HW19710 manual transmission
Cabin	Sleeper cab; Rated nr. of passengers: 2
Overall Size	12500,12750×2550×3995 mm (L×W×H)
Wheelbase	1800+4575+1400mm
Wheel Tread	Front 2015/2015,2035/2035,2060/2060 mm; Rear1830/1830,1850/1850,1870/1870mm
Front/Rear Overhang	1430/2925,1430/2805mm
Gross Vehicle Weight	31000kg
Tare Weight	30870,30805kg
Axle Rating	6500/6500/17500kg(tandem)
Approach/Departure Angle	19°/10°
Max Speed	110km/Hour
Engine	Sinotruk MC07.34-60, diesel engine; 6 cylinders in-line, 6.87L; Class level VI emission
Engine Output Power/Speed	248kW(340hp)/2200rpm
Engine Output Torque/Speed	1250N·m/1200-1800rpm
Transmission	Sinotruk HW19710 MT; Forward, 10 speed/Reverse, 2 speed
Tires	315/80R22.5 18PR,295/80R22.5,12R22.5,12.00R20 18PR,11.00R20,315/60R22.5 20PR; 12+1 spare tire
Inspection Assembly:
Make/Model	XCGM/ APU0C7E004R
Horizontal Underbridge Reach	18m
Sidewalk Clearance	5.4m
Fence Clearance	6.5m
Box Girder Clearance	6.9m
Vertical Down Reach	21.5m
Vertical Overhead Reach	19m
Max Platform Capacity	250kg
Max Platform Size	1.2X0.8X1.1m
Rotation Range Of 1st Slewing Organization	0-90°
Rotation Range Of 2nd Slewing Organization	0-180°
Self-propelled Walking Speed	13m/min
