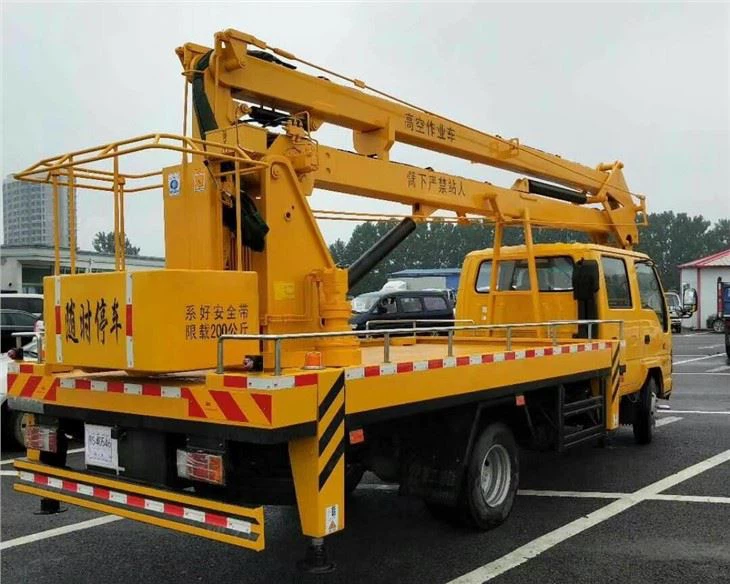

ISUZU NKR 4×4 Crew Cab Truck
12m Articulated Body Unit
ISUZU 4KH 130hp Engine
ISUZU 5-Speed Transmission
| BT12QL100L5 | ||||
| SPECIFICATION | ||||
| General Information | ||||
| Cab Chassis Make/Model | ISUZU/QL2043A6HAY | Wheel Drive | 4×4 LHD | |
| Measurement | ||||
| Overall Size (L × W × H) | 5.998×2.1×2.95m | Front/Rear Overhang | 1015/1575mm | |
| Front/Rear Track | 1377/1425mm | Wheelbase | 3360mm | |
| Ground Clearance | 210mm | Bucket Size | 1.08×0.62×1.1m | |
| Boom Max. Outreach | 12m | Working Radius | 5.8m | |
| Outrigger Horizontal Width | Front 1600mm, Rear 2780mm | Max Lifting Height | 6.4m | |
| Outrigger Vertical Width | 2430mm | |||
| Weights | ||||
| Bucket Loading | ≤200㎏ | Tare /Curb Weight | ||
| Gross Vehicle Weight(G.V.W) | 6000kg | Crane Lifting Weight | 1000kg | |
| Front/Rear Axle Rating | 2000/4000kg | |||
| Cab | ||||
| Cab Style | Day Cab | Cab Model | ELF 100 | |
| Cab Roof | Standard(low roof) | Cab Width | 1695mm | |
| Construction | Full steel suspended | No. of Seats | 3 | |
| Instrument & Controls | Standard | Driver Seats | air bag | |
| Tiltable | Front tiltable | Equipment & Device | AC, power steering | |
| Engine | ||||
| Make/Model | ISUZU/4KH1CN5LS | Output Power/Speed | 72kW@2600rpm | |
| Max. Torque / Speed | 220N.m@1500rpm | Displacement | 2.999L | |
| Engine Type | Water cooled, 4 cylinders ,4 stroke, turbo charged, diesel engine | Emission Regulation | EURO 5 | |
| Transmission | ||||
| Make/Model | ISUZU/MSB-5SM | Type | Manual | |
| Gear Numbers | 5F+1R | Synchronizer | YES | |
| Wheels | ||||
| Wheel Numbers | 6+1 spare tire | Tires | 7.00R16 | |
| Body Unit | ||||
| Make/Model | CSCTRUCK/BT12A | Boom Numbers | 3 seciton articalting | |
| Rotation Angle | 360º all rotation | Pressure of Hydraulic | 16 Mpa | |
| Oil Tank Capacity | 25 L | Hand Rail in Platform | Stainless steel | |
| Safety Device | Proportional valve, spirit level, imported balance valve, hydraulic lock | Outrigger | Independent | |
| Boom Slewing | 15º/second | |||
| Operation | Dual controls rotator&bucket, Electric hydraulic up and down operation | |||
| Platform | ||||
| Model/Model | 12CB/CSCTRUCK | Side Wall | 2mm high tensile steel | |
| Floor/Platform | 3mm Check Plate Steel | Door | Side open | |
