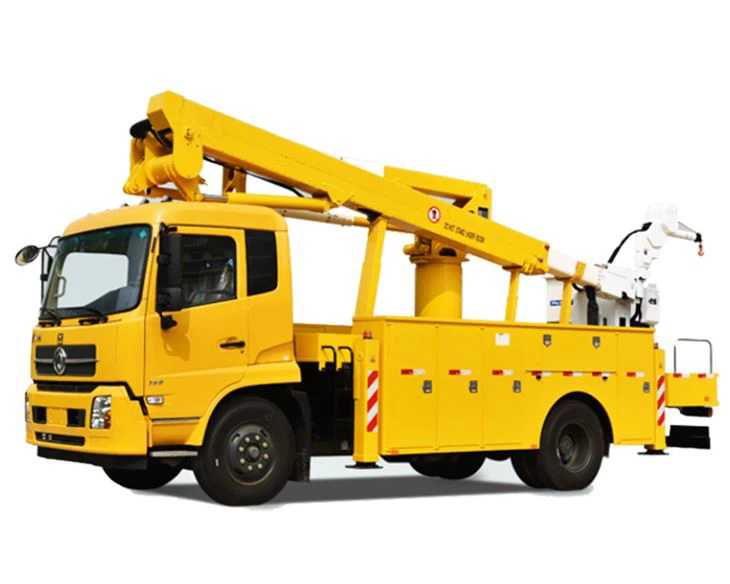

19.5m Insulated Sky Lift Truck

BRIEF

Insulated sky lift truck has emerged as highly adaptable aerial devices in various industries such as construction, electric utility, telecommunication, and lighting. Particularly, our 19.5m insulated sky lift truck is ideally suited for electric utility and related sectors. Insulated bucket trucks' outstanding insulation performance, wider operational range, and smooth boom operation make them indispensable tools for these industries. Additionally, the insulated sky lift truck is equipped with all-around safety devices, ensuring maximum protection for workers.

The insulated sky lift truck provides a working reach of up to 11.5m, making it highly useful in many scenarios. Moreover, it has an impressive loading capacity of 280kg, enabling it to carry a range of materials and equipment. The insulated bucket truck is engineered with precision to ensure that it can operate efficiently even in challenging environments. The insulation technology provides an extra layer of safety for operators when working near high-voltage lines or electrical equipment.

In conclusion, the CSCTRUCK insulated sky lift truck is a crucial asset in the electric utility and related industries. Its versatile features and all-around safety devices make it a reliable and efficient choice for workers.

FEATURES

STANDARD FEATURES:

1. Emergency electric pump: This refers to an electrically-powered pump that is used as a backup in case the main hydraulic pump fails. It is designed to provide enough power to enable the machine to be safely lowered or elevated to a stable position.
2. Vehicle level state tester: This feature allows the machine to test and adjust its level when mounted on a vehicle. It helps to ensure that the machine is stable and safe to use.
3. Platform vertical moving function: This feature enables the platform to move vertically, allowing operators to reach different heights while working.
4. Outrigger support status monitoring: This is a safety feature that monitors the position of the outriggers, which are used to stabilize the machine during operation. It alerts the operator if the outriggers are not properly extended or if they are uneven.
5. Hydraulic power socket of working platform: This feature provides a power source for hydraulic tools or equipment that may be used on the working platform.
6. Imported lifting assembly from the United States: This refers to the use of lifting equipment that has been imported from the United States. This equipment is known for its high quality and reliability.
7. Engine ignition from the working platform and turntable: This feature enables the engine to be started from the working platform or turntable, providing greater convenience and ease of use.
8. Electronic speed control of throttle for the working platform and turntable: This feature allows for precise control of the machine's speed when operating on the working platform or turntable. It helps to ensure that the machine operates smoothly and safely.

OPTIONAL FEATURES:

1. Appearance style: This feature refers to the visual design of the machine. It may include custom paint colors, graphics, or other aesthetic features that enhance the machine's appearance. This feature is not necessary for the machine's operation, but it can be important for branding or marketing purposes.

SPECIFICATION

Model	IBT19.2DFH210L6
Chassis	DONGFENG Tianjin 4X2Drive LHD; DONGFENG CUMMINS B6.2NS6B210 210hp diesel engine; DONGFENG DF6S900 6 speed manual transmission
Cabin	Sleeper cab; Rated nr. of passengers: 3
Overall Size	8420,8590×2500×3850,3750,3800mm (L×W×H)
Wheelbase	4200mm
Wheel Tread	Front 1876,1896,1935,1950,1914,1815mm; Rear 1820,1860,1800,1840mm
Front/Rear Overhang	1430/2555,1430/2400mm
Gross Vehicle Weight	11505kg
Tare Weight	11310kg
Axle Rating	3950/7555kg
Approach/Departure Angle	17°/11°
Max Speed	89km/Hour
Engine	DONGFENG CUMMINS B6.2NS6B210, diesel engine; 4 cylinders in-line, 6.2L; Class level VI emission
Engine Output Power/Speed	154kW(210hp)/2300rpm
Engine Output Torque/Speed	850N·m/1100-1700rpm
Transmission	DONGFENG DF6S900 MT; Forward, 6 speed/Reverse, 1 speed
Tires	9.00R20 16PR,255/70R22.5 16PR,10R22.5 16PR; 6+1 spare tire
Lifting Assembly:
Max Working Height of Platform	19.2
Max Working Reach	11.5m
Turntable Rotation	360°
Rotation Speed	2100r/min
Platform Rotation	±90°
Max Platform Capacity	280kg
Hook Lifting Capacity	450kg
Hook Lifting Height	22m
Applicable Voltage Level	0-35kV
Outrigger Type	H-shaped
Span of Outriggers	3500mm
