32 M Ladder Lift Mounted On JMC Truck

BRIEF INTRODUCTION
• Chassis Maker JMC 4x2 Truck Chassis
• Engine JX493 Diesel ,115hp, EURO 5 Emission regulation
• Bucket (carriage box) Size 2400x1300x450(mm)
• Hydraulic LADDER LIFT TYPE
• 7 Staged Boom

Send Inquiry

Description

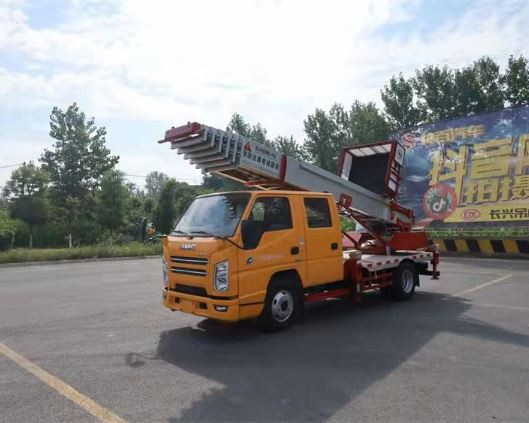

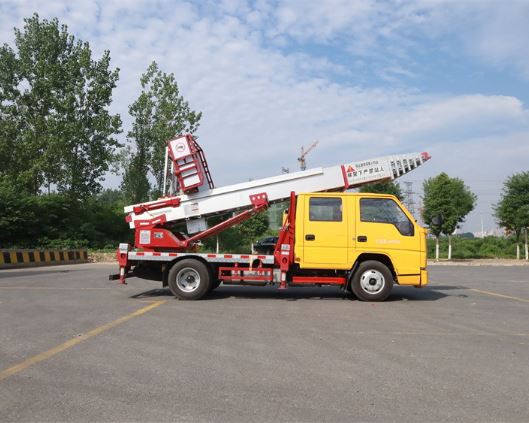

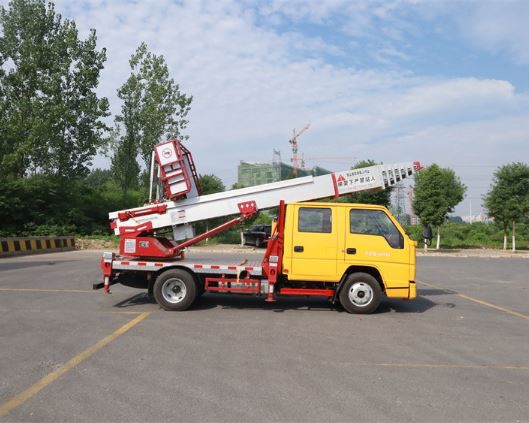

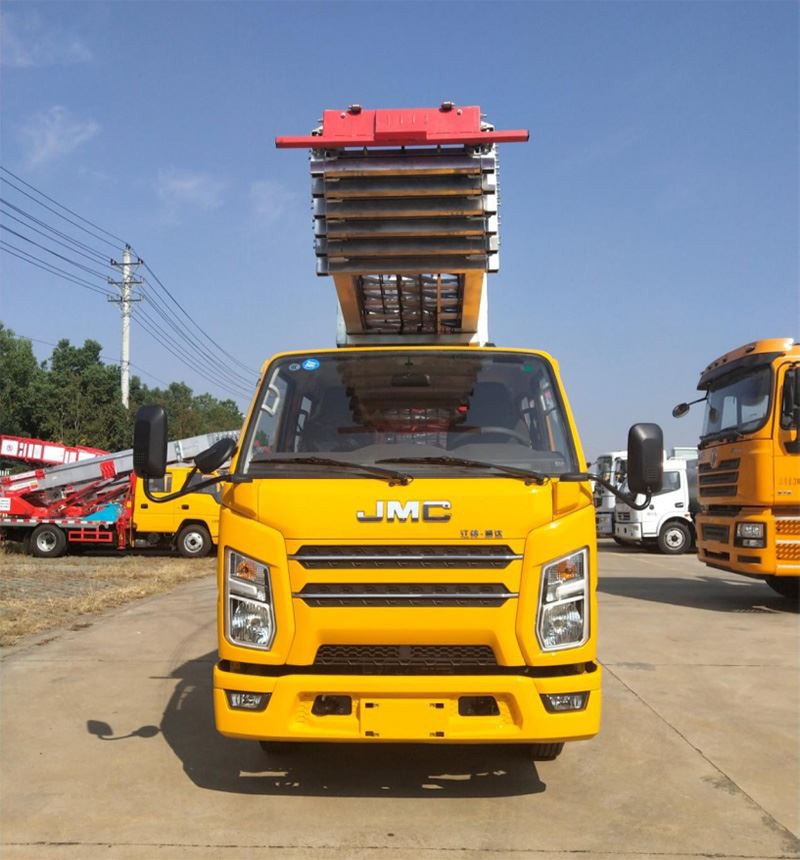

32 M Ladder Lift Mounted on JMC Truck0

32 M Ladder Lift Mounted on JMC Truck

Model: LL32JX115L5

Max. working height 32m

Strong and compact ladder truck, low maintenance cost, ideal for urban settings

All equipment can be mounted on North American Trucks

BRIEF INTRODUCTION

• Chassis Maker JMC 4x2 Truck Chassis

• Engine JX493 Diesel ,115hp, EURO 5 Emission regulation

• Bucket (carriage box) Size 2400x1300x450(mm)

• Hydraulic LADDER LIFT TYPE

• 7 Staged Boom

• Max Lifting Height 32m

• Outrigger Extended 1,100mm

• Shipping size: 5,995 x 1,900 x 2,900mm

• Shipping weight:4,170kg

PRODUCT DESCRIPTION

The ladder lift truck is mainly composed of sub frame assembly, ladder assembly, turntable assembly, winch assembly, hydraulic system, Electrical system, etc. Mainly used for moving companies, project leasing, solar installation, billboard installation, air conditioning installation, cement sand and gravel handling, building materials upstairs, construction waste handling, bulky upstairs handling, ship maintenance, road and bridge maintenance, etc.

The working range of the 32-meter ladder truck can reach 32 meters, which is equivalent to the height of an 11-story building, and the maximum load weight is 400 kg.

MAIN FEATURES

One-button Ignition, Flameout

Ignition and flameout control of the engine can be carried out on both the control panel and the wireless remote control.

Night Safety Lighting

The lights on the boom could be controlled in the control panel in the vehicle.

Work Diagram

During operation, the angle of the ladder can be visually checked, and the height of the ladder can be known at any time.

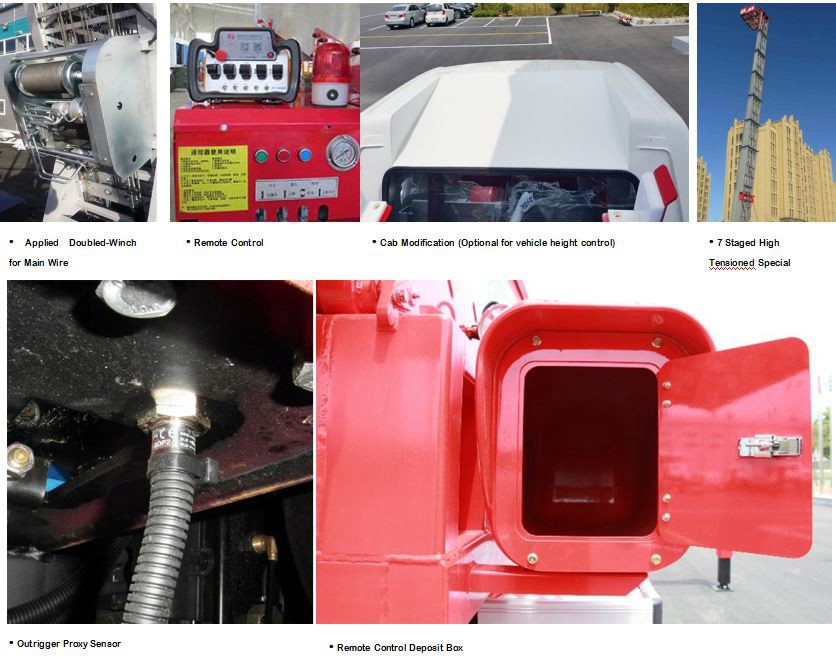

Remote Control

One-hundred-meter remote control, can control by one key turn off/ start, bucket carriage could be move up and down in automatic operation.

Dump Bucket

Easy to install dump bucket, can load 0.3 to 0.4 cubic meters of sand each time.

Hydraulic System

Germany BOSCH complete set of hydraulic system, balance valve unit and multi-way valve

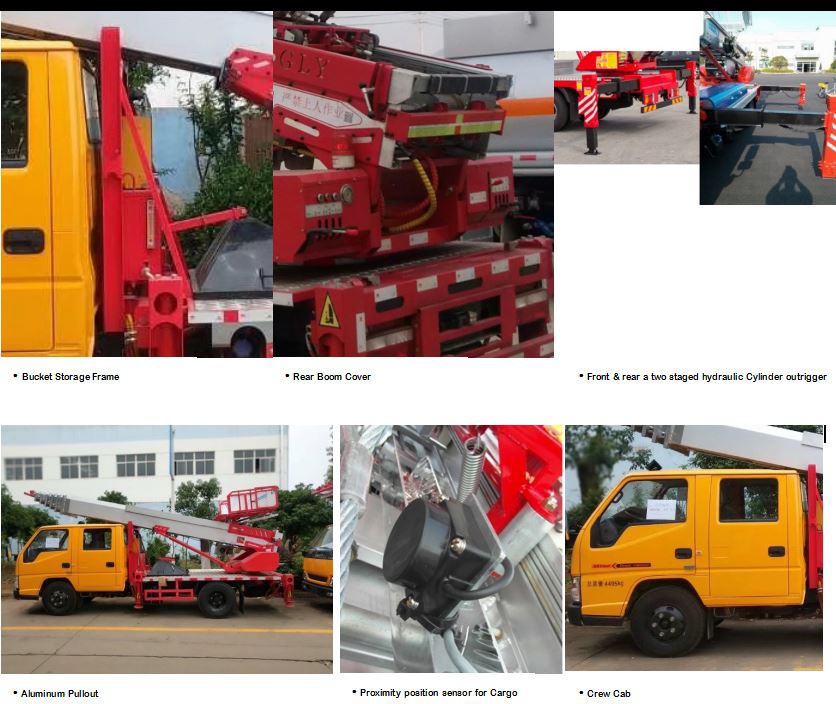

Hydraulic Outriggers

Jack and cylinders are FAST brand, (which exported to the USA and Japan ) the cylinder has an independent steel stamp, which is an important part of the vehicle

Other Good Quality Parts

Hydraulic motor (imported parts): drive the winch

Brake (imported part): lock the winch

Hydraulic lock (import part): lock hydraulic oil (prevent pressure relief)

Reducer (imported parts): deceleration motor, auxiliary stop rotating platform

TECHNICAL DATASHEET

Item	Description	Parameters
General	Overall Size (Lx Wx H)	5,995 x1,900x 2,900 mm
	Model	LL32JX115L5
	Drive Mode	4x2, LHD
	GVW	5,000 kg
	Tare Weight	4,170kg
	Chassis Model Line/Make	JMC115 /JiangXi ISUZU
	Engine Power	115hp
	Body Model/Make	LL32/CSCTRUCK
Engine	Model/Make	JX493ZLQ5 /JiangXi ISUZU
	Air Intake	Turbocharged
	Cylinder Numbers	4
	Fuel Type	Diesel
	Cylinder Arrangement:	inline
	Displacement:	2.771L/2771ml, cc
	Emission Standards:	Euro 5
	Maximum Output Power:	85kW
	Rated Speed:	3200rpm
	Maximum Horsepower:	116 hp
	Max Torque:	285N.m
	Maximum Torque Speed:	1800-2200rpm
Transmission	Model/Make	5MTI301 /Getrag China
	Transmission Type	3-axis vertical
	Shift Mode	Wire drawing operation & direct operation
	Speed	5 forward+1 Reverse
	Max.Torque	350Nm
	Max Ratio Range	4.65~5.64
Cab	Model/Make	SHUNDA/JMC
	Construction	Full steel constructed
	Type	Crew cab, 5 persons allowed

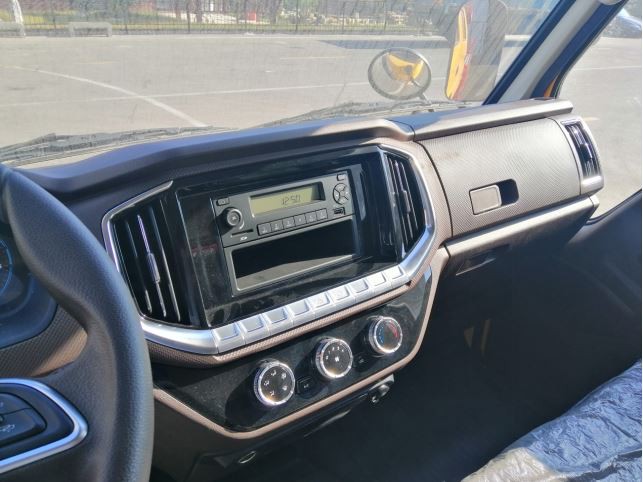

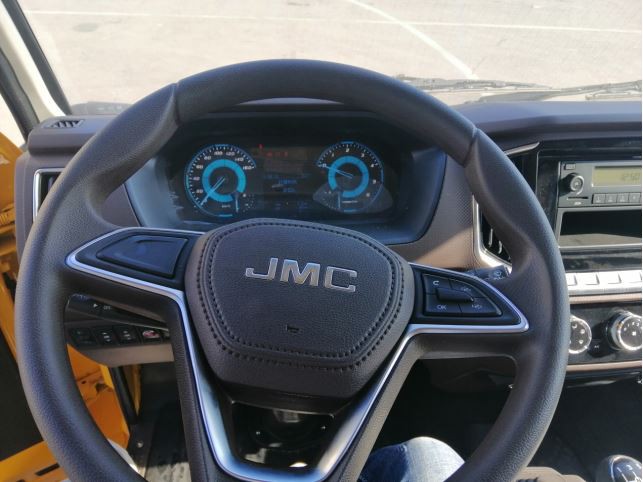

	Equipment	AC, Multifunction steering wheel, auto windows, Central lock.
Truck Chassis	Front /Rear Track	1385mm/1425mm
	Approach / Departure Angle	20º/15º
	Front /Rear Overhang	1075mm/1560mm
	Front/Rear Axle Rating	1895kg/2600kg
	Suspension	Mechanic Leaf Spring, Front 7, Rear 4+6
	Steering	Power assistance (air adjustable)
	Wheel & Tire	7.00R16LT 10P, 6+1 Nos.
	Fuel Tank Volume	68L
	Electric System	24V battery, frog lamb, Headlight height adjustable
	Brake System	Air Brake, ABS
Performance	Bucket Carriage Payload	400kg
	Boom Working Height	32m
	Max. Drive Speed	100km/h
	Outrigger Extended	1200 mm
	Walking Platform	Checked Aluminum sheet constructed, anti-slip
	Driving Type	Hydraulic pump driving system via PTO from transmission.
Bucket (carriage box)	Size	2400x1300x450(mm)
	Structure	Aluminum constructed, left heightened holes, (can be widened and heightened)
	Angle Adjust Type	Manual (auto level in a hand)
	Operating Type	Hydraulic winch
	Speed	60 M/min, adjustable with accelerator
Boom	Structure	5.7m(length)×0.8m(width)×7 (section) synchronous telescopic boom
	Material	High tension aluminum alloy
	Rise & Fall	via Double luffing cylinders, the boom rises and falls, and the rotation is more stable
	Operating Type	Hydraulic winch with double wire rope
Turntable	Operating Type	Hydraulic motor
Turntable	Slewing Angle	170 º left and right
Outrigger	Jack Numbers	4 pcs
	Type	H-type, individually adjustable
	Beam Operating	Hydraulic
	Jack Operating	Hydraulic
Control	Emergency	Manual lever
	Standard remote controller	1-channel wire type
	Bucket	Electrical operation on ground remote control
	Boom	Electrical operation on ground remote control
	Turntable	Hydraulic manual
	Radiator	Manual, automatic cooling when the temperature reaches 35 degrees
Safety	Vehicle Leveling Device	Equipped with a vehicle state level meter, which can detect the inclination state of the vehicle in both horizontal and vertical directions
	Top /Bottom Interlock	Used for interlocking on and off the truck to prevent the danger of mis operation (converter)
	Boom Elevator Limit Alarm Device	The ladder boom is extended to 32 meters, and the automatic limit pressure relief sound alarm prompts
	Gear Brake	In the case of accidental breakage of the wire rope, it is stuck on the arm gap and acts as a buffer
	Plunger Brake	In the case of accidental breakage of the wire rope, it is inserted into the beam of the ladder, and it can brake left and right within a short distance (the plug-in brake is an invention patent by CSCTRUCK)
