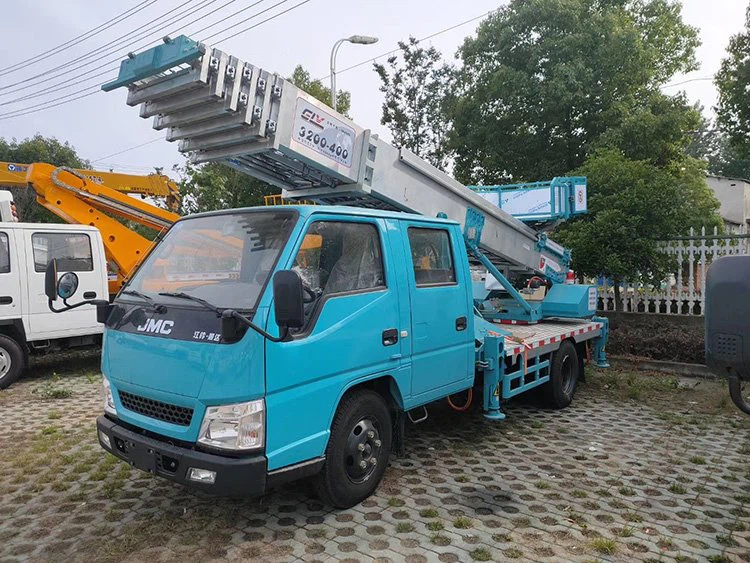

32 M Ladder Lift Truck

BRIEF

•JMC 4x2 Truck Chassis

•Wheelbase length 3360mm

•Bucket size 1100x1000x450mm

•Hydraulic LADDER LIFT TYPE

•Max Lifting Height 32m

•Bucket Loading Max 400kg

MAIN FEATURES

1. Chassis:

The chassis adopts Jiangling chassis, with low failure rate and high reliability. The weight of the vehicle is controlled within 4.5 tons, and the blue card can be listed, and the C1 driver's license can be driven, making money easy and worry-free.

2. Electrical aspects:

Through CAN bus control, step less speed change can be realized.

It is intelligent, starts smoothly, accelerates in the middle, and decelerates to a stop at the end.

The transportation of materials adopts remote control, which is convenient and quick.

3. Hydraulics:

Cast iron high pressure gear pump, high efficiency and long life.

With electric control proportional valve, remote start without impact.

Built-in memory function, one-key lifting, reducing work intensity.

High-power cycloid motor, stronger transportation traction.

The slewing support is integrated with a turbine reducer, which makes the rotation more stable and prevents overturning.

Imported balance valve, safe and reliable, and long service life.

The electronically controlled automatic induction heat dissipation system can better realize the heat balance of the whole machine.

Large-capacity hydraulic oil tank, internal use electrostatic spraying process, professional anti-corrosion paint treatment, double filtration, higher system cleanliness, more convenient maintenance.

4. Mechanical structure:

The friction sliding gap of each boom of the ladder frame of the aerial ladder is 2mm, which is controlled by the roller and the top tightening bolt.

Reduce the swing of the ladder from side to side.

The protrusion between the plastic slider and the profile is used to reduce friction.

The wire rope connection method of the ladder to realize synchronous sliding.

The working mode of multiple rollers and guide wheels acting simultaneously between the rack trolley and the ladder to ensure the normal operation of the trolley.

The trolley adopts two safety methods to prevent falling.

The trolley roller adopts a shock-absorbing structure to ensure that the trolley runs smoothly during work.

The shelf adopts a new cross-section aluminum alloy structure to ensure quality and service life.

The outriggers are made of Shanghai Baogang 700Mpa high-strength steel plate to ensure the safety of the whole vehicle.

INTRODUCTION

The operating range of the 32-meter ladder truck can reach 32 meters, which is equivalent to an 11-floor building. The new cross-section ladder boom guarantees product quality, and the maximum bucket loading weight 400 kg. Mounted on JMC 4x2 truck chassis, with low failure rate….

Specification
