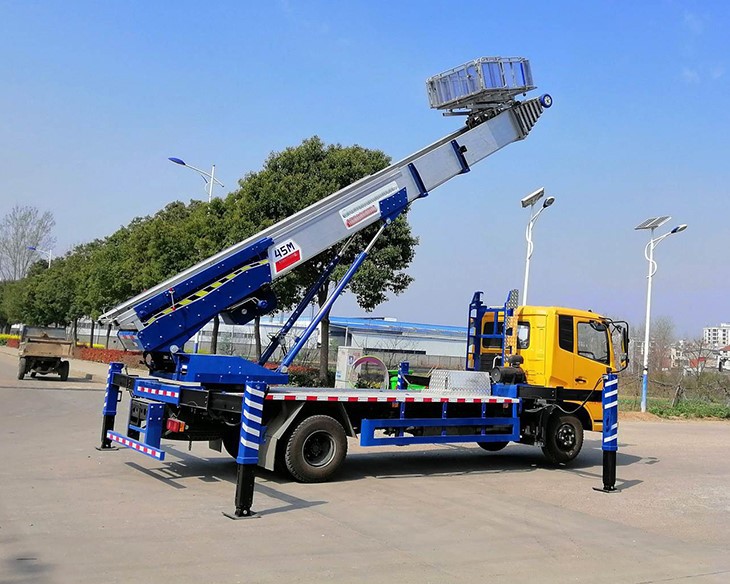

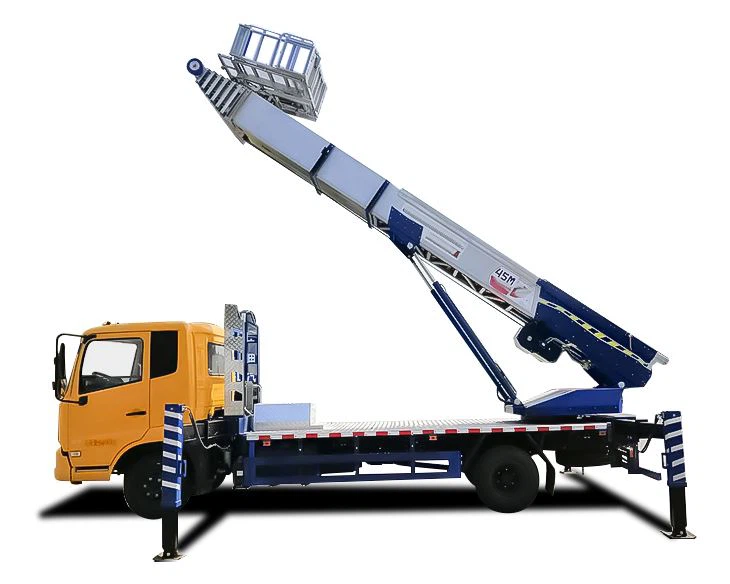

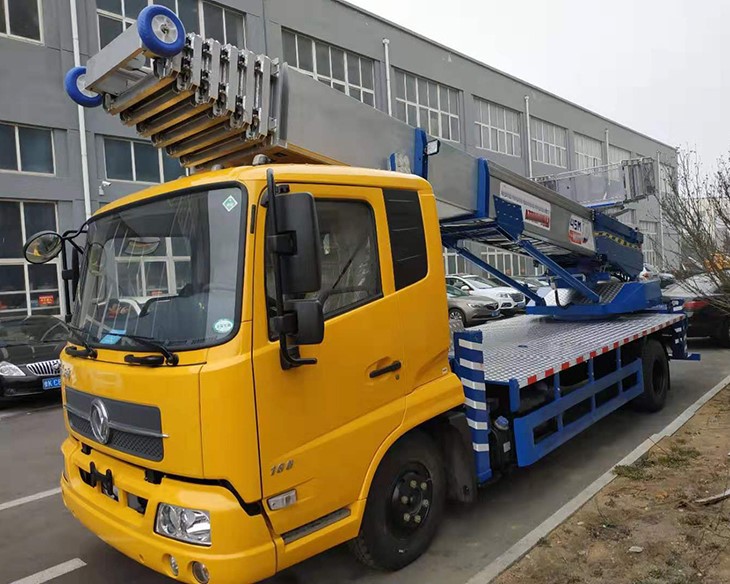

45m Ladder Lift Mounted On Dongfeng Truck

BRIEF

The ladder lift truck is a combination of a truck and ladder lift equipment, designed to transport cargo from the lower level to high floors, primarily on construction sites. Our ladder lift truck is 45m high and mounted on a Dongfeng truck chassis. It is constructed using high-strength special aluminum alloy, ensuring it can support weights of up to 400kg. This feature allows the ladder lift truck to transfer heavy loads quickly, reducing the need for manual labor and saving time. Additionally, the ladder lift truck's compact design enables it to access narrow alleys, making it possible to transport cargo anywhere, anytime. Overall, the CSCTRUCK ladder lift truck is a practical and efficient solution for transporting heavy loads in a variety of settings, including construction sites.

FEATURES

Standard Features:

1. Air pump: This refers to a device that is used to inflate or deflate something such as tires or an air mattress.
2. Hydraulic radiator: This is a component that helps to regulate the temperature of the hydraulic fluid in a machine.
3. Platform travel memory function: This refers to a feature that enables a platform to remember its previous position and return to it automatically.
4. Integrated wired and wireless remote control: This means that the machine can be controlled both by a wired remote and a wireless remote.
5. Safety systems such as boom withdrawal limit, leveling device, and overload detection: These are safety features that prevent accidents by limiting the boom withdrawal, ensuring that the machine is level, and detecting when the machine is overloaded.

Optional Features:

1. Engineering lights on the ladder boom: These are lights that can be installed on the ladder boom to improve visibility when working in low-light conditions.

SPECIFICATION

Model	LLT45DFH160L6
Chassis	DONGFENG Tianjin 4X2Drive LHD; DONGFENG CUMMINS D4.0NS6B160 160hp diesel engine; DONGFENG DF6S650 6 speed manual transmission
Cabin	Sleeper cab; Rated nr. of passengers: 3
Overall Size	8020,7520×2380×3300mm (L×W×H)
Wheelbase	3300,4000,4500mm
Wheel Tread	Front 1800,1868,1888mm; Rear 1800mm
Front/Rear Overhang	1445/2075mm
Gross Vehicle Weight	9400,870kg
Tare Weight	9205,8505kg
Axle Rating	3385/6015,3130/5570kg
Approach/Departure Angle	18°/17°
Engine	DONGFENG CUMMINS D4.0NS6B160, diesel engine; 4 cylinders in-line, 4L; Class level VI emission
Engine Output Power/Speed	118kW(160hp)/2400rpm
Engine Output Torque/Speed	550N·m/1100~1800rpm
Max Speed	99km/Hour
Transmission	DONGFENG DF6S650MT; Forward, 6 speed/Reverse, 1 speed
Tires	235/75R17.5 14PR,8.25R16LT 16PR; 6+1 spare tire
Lifting Assembly:
Make/Model	ZTON450LT

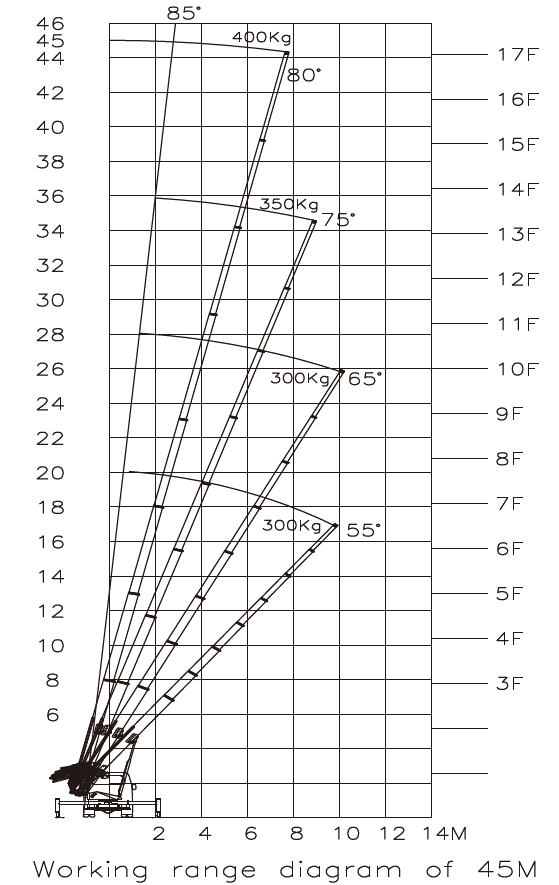

Max Lifting Height	45m
Basic Ladder Boom Length	7000mm
Section	8
Material	Hight-tension aluminum alloy
Max Working Reach	10m
Carrier Lifting Capacity	400kg
Carrier Elevating Speed	60m/min
Carrier Size	2410X1700X520mm/ 1300x1000x500mm
Rotation Angle	270°
Hydraulic Pressure	180Kg/cm2
Hydraulic Capacity	51cc/rev
Outrigger Type	H
Outrigger Extension Span	6215mm
