Lifting Height 20m
Max. Reach 11m
Bucket Size 1.28*1.2*0.71m
Bucket loading 280kg

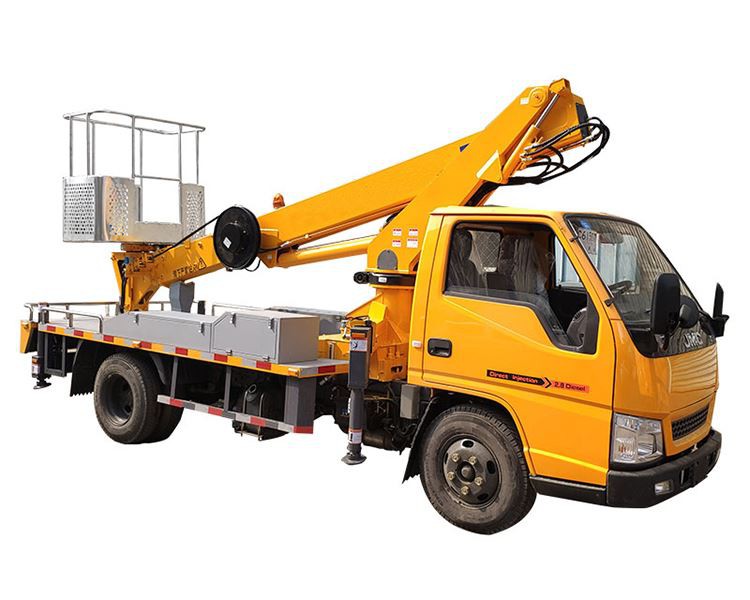

20m Skylift Aerial Work Platform Truck
BRIEF
Lifting Height 20m
Max. Reach 11m
Bucket Size 1.28*1.2*0.71m
Bucket loading 280kg
INTRODUCE
CSCTRUCK aerial work platform Vehicle popular with four types of max working height: 17m, 20m, 21m and 23m.
The vehicle adopts lightweight design, uses high strength steel plate to manufacture the main structure. The working platform and carriage are all made of high strength aluminum alloy material. The weight of the whole vehicle is less than 4350kg. It shows that the driver with light vehicle licenses can drive. At the same time, it is equipped with a wireless remote control and real-time display of working conditions. The aerial work platform Vehicle with the functions of automatic limit of operating range, automatic protection of "soft legs", external 220V municipal electric interface, leakage protection and so on.
 |  |
| Item | Unit | GK20S |  |
| Max.Lifting weight | kg | 260 | |
| Max.working height | m | 20 | |
| Max.Working Radius | M | 11 | |
| Swing range of basket | ° | ±180° | |
| Slewing angle | ° | 360° | |
| Working Platform size | mm | 1280*710*1200 | |
| Max. Vehicle Speed | km/h | 90 | |
| Engine Power | KW | 85 | |
| Size of vehicle | mm | 5995x2050x2900 | |
| Weight of vehicle | kg | 4350 |
DETAILS
Bucket Bucket size 130cm×68×120cm, Maximum load is 260Kg (maximum 2 people), Working platform can rotate 180° to the left and right, which perfectly solves the problem of dead angle. |
|
| Front Outrigger The front cross-leg form makes the vehicle more stable and safer to work. It is equipped with "soft leg" protection. |
Boom The boom adopts the domestic leading 3-section full chain telescopic structure, built-in chain break protector, safe and reliable, longer service life, built-in extension. The retracting arm cylinder has a beautiful appearance and a simple structure. |
|
Safety Device
Lock up and down, limit protection, soft leg protection, emergency pump, two-way balance valve, etc.;
Controls
Wireless Remote Control Pan
Testing
Anti-rollover test
Bucket loading test
After Sales Service
Promise！！！
We are famous special vehicle manufacturer, professional truck vehicle exporter and one stop solution supplier in China, our team have more than 20 years’ experience in this field already.
1) Warranty: Each vehicle/ equipment delivered with a standard one-year warranty period, during which we will offer the defective parts free of charge and guide how to repair by phone or through video if material or process defects occur and spare parts are in normal working condition.
2)Spare parts: We are dedicated to provide our clients with genuine spare parts with the highest quality, exact fitness and appropriate function. we guarantee that your request will be handled quickly and appropriately.
