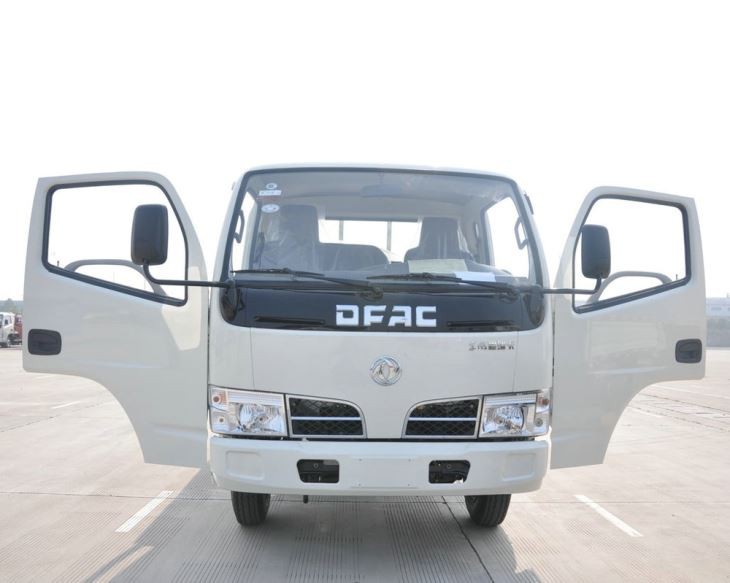

Rear Loader Refuse Lorry Chassis

Chassis Model

DFA1040L35D6

Chassis Type

Special truck chassis

Drive Mode

4×2

Wheelbase

3300mm

Truck Bed Length

3.9 m

Engine

102hp

Transmission

12 speed

Rear axle ratio

5.833

Chassis length in

5.995 m

Chassis width in

1.98m

Chassis height in

2.3 m

Tread

Front 1510mm

Rear 1550 mm

Chassis Tare Weight

2.16 Ton

Recommended Loading

2 Ton

Gross Vehicle Weight

3.785 Ton

Max Driving Speed

95KM/h

Manufacturing by

DFAC

Loading Type

Heavy duty

ENGINE

Make

SIDA Engine Co.

Model

SD4BW754U

Fuel Type

Diesel

Cylinder Lineup

Vertical in line

Displacement

2.545L

Emission Standard

EuroⅣ

Max Output in kw

73kw

Max Output in ps

102

Max Torque

278N·m

Max Torque at rpm

1800

Output at rpm

3000

CABIN

Cab Model

REALING S

Cab Type

Day cab

Passengers Allowed

3 Nos

Seats and Sleeper Line

Front driver / co-driver seats

TRANSIMISSION

Make

FAW & ZF Gearbox Factory

Model

JIANGSHAN gear-box

Type

Manual

Forward

5Nos.

Reverse

1 Nos.

Casting Material

Steel

TIRES,   BRAKES,OIL TANKS

Tire Size

6.5-16

Tire Nos

6+1

Brake Type

Oil Tank

95L steel

AXLE,   SUSPENSIONS

Front Axle Model

2020

Front Axle Loading

Rear Axle Model

435

Rear Axle Loading

Rear Axle Ratio

5.833

Leaf Spring Nos

8/9+5

ABS

Equipped
