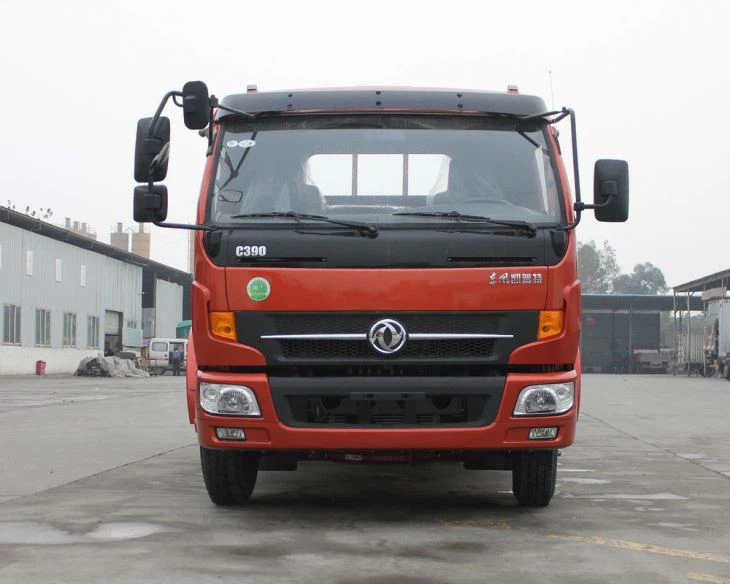

Rear Loading Refuse Truck Chassis

● CAPTAIN C290 4×2Chassis
● CUMMINS 160ps Engine
● Truck Bed Length in 6.2M
● Light duty load 9 T
● Size 8×2.33×2.62m
● Euro 5 Emission Class

Send Inquiry

Features

● CAPTAIN C290 Chassis

● CUMMINS 160ps Engine

● Truck Bed Length in 6.2M

● Light duty load 9 T

● Size 8×2.33×2.62m

● Euro 5 Emission Class

● Drive Mode 4×2 (LHD)

● Transmission 6 speed forward +1 Nos reverse

● Wheelbase length in 4400mm

● Displacement:3.9L

The truck chassis suitable for mounting following trucks as

● Tank Trucks with fuel, water, refuel, chemical, food grade, gas , dry bulk etc.

● Fire Trucks with water ,foam, chemical, Compressed air and rescue type

● Garbage Trucks with rear loader, hook loader, skip loader, side loader

● Sewer Trucks with vacuum suction, combination sewer cleaner and jetter

● Sweeper Trucks with Waterless, Road Washing, Street sweeper

● Tow Trucks with flatbed, integrated, rotator style

● Asphalt Delivery Truck for Road Construction

● Bucket Trucks with Insulated, Articulated, Telescopic, Articulated Telescopic Type

● Truck Mounted with Crane of Articulating and Telescoping Type

● Van Trucks include Refrigerated, Mobile Workshop, Mobile Stage, Cage Box, Mobile LED and RV

GENERAL INFORMATION:
Chassis Model	DFA1090S11D5
Chassis Type	Special truck chassis
Drive Mode	4×2
Wheelbase	4400mm
Truck Bed Length	6.2m
Engine	160hp
Transmission	6+1speed
Chassis length in	7.995m
Chassis width in	2.33m
Chassis height in	2.62 m
Tread	Front 1835/1835mm Rear 1640/1640mm
Chassis Tare Weight	4.015Ton
Recommended Loading	9Ton
Gross Vehicle Weight	9.2Ton
Max Driving Speed	99KM/h
Manufacturing by	DFAC
Loading Type	Light duty
Front bumper angle with ground Rear bumper angle with ground	25.5° 11°
Front forward to first axle distance Rear end to last axle distance	1180mm 2415mm
ENGINE
Make	DONGFENG CUMMING ISB3.9-160E40A
Model	ISB3.9-160E40A
Cylinders	4 nos.
Fuel Type	Diesel
Cylinder Lineup	Vertical in line
Displacement	3.9L
Emission Standard	Euro V
Max Output in kw	116
Max Output in ps	160
Max Torque	510N·m
Max Torque at rpm	1500
Output at rpm	2500
Engine Type	4 cylinder in-line, direct injection, turbocharged inter-cooling, CRDI
Cabin
Cab Type	flat floor all steel constructed
Passengers Allowed	3 Nos
Seats and Sleeper Line	Front driver / co-driver seats
TRANSIMISSION
Type	Manual
Forward	6Nos.
Reverse	1 Nos.
Casting Material	Steel
TIRES, BRAKES,OIL TANKS
Tire Size	8.25-16
Tire Nos	6
Brake Type	Air-brake
AXLE, SUSPENSIONS
Front Axle Model	2020
Front Axle Loading	3500/3500KG
Rear Axle Loading	5700 KG tandem
Leaf Spring Nos	11/13+8
ABS	Equipped
