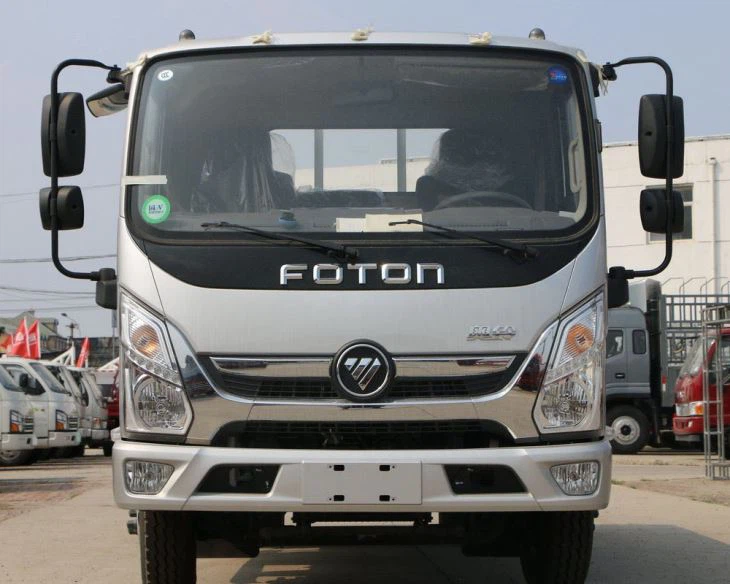

Side Loader Refuse Truck Chassis

Side Loader Refuse Truck Chassis

● FOTON Ollin TS 4x2
● Truck Bed Length 3.8m
● Size 6×2.06×2.33m
● Light Duty Load 1.735 T
● Cummins 110ps Engine
● Ecological Class 5 Emission

Description

Side Loader Refuse Truck Chassis

FEAURES

● FOTON Ollin TS 4x2

● Truck Bed Length 3.8m

● Size 6×2.06×2.33m

● Light Duty Load 1.735 T

● Cummins 110ps Engine

● Ecological Class 5 Emission


● High Carrying Ability

Chassis reinforcement: Reinforced chassis optimized by Mercedes-Benz heavy duty technology, More than 20% increase in carrying capacity. Also the leaf spring being reinforced, better loading capacity than other brands. With smoothness and stability in empty and full loading, single-delivery capacity improved.

● High Energy Savings

Cost-effective: In cooperation with AVL Austria and Lotus UK, the use of advanced combustion systems to achieve a 100 km economy of only 6.44L fuel consumption.

Energy saving and environmental protection: the use of advanced supercharged cold intake system and Bosch high-pressure common rail fuel system, so that the product meets the national V emission regulations.

● High Reliability

Power Upgrade: 4J28TC powerful Engine, which upgrade based on original Isuzu, rated at 81kw, maximum torque of 280Nm, starting up to 90km/h in just 9.33 seconds.

The vehicle with much better climbs ability and accelerates better.

Strong environmental adaptability: through high temperature, plateau, high cold area adaptability calibration, so that the power is suitable for the use of various regions of the domestic environment.



GENERAL INFORMATION

Chassis Model

BJ1045V9JD6-F2

Chassis Type

Special truck chassis

Drive Mode

4×2

Wheelbase

3360 mm

Cab to Rear

3.8 m

Engine

110 hp

Transmission

6+1 speed

Chassis length in

6 m

Chassis width in

2.06 m

Chassis height in

2.33 m

Chassis Tare Weight

2.565 Ton

Recommended Loading

1.735 Ton

Gross Vehicle Weight

4.5 Ton

Max Driving Speed

105 KM/h

Manufacturing by

Beijing Factory

Loading Type

Light duty

Approach Angle

Departure Angle

19°

16°

Front Overhang

Rear Overhang

1110 mm

1525 mm

Front Track

Rear Track

Front 1590 mm

Rear 1485 mm

ENGINE

Make

FOTON Engine Co.,Ltd

Model

4J28TC3

Series

FOTON493

Cylinders

4 nos.

Fuel Type

Diesel

Cylinder Lineup

Vertical in line

Displacement

2.771L

Ecological Class

5

Max Output in kw

81

Max Output in ps

110

Max Torque

280 N·m

Max Torque at rpm

1700-2300

Output at rpm

3200

Engine Type

Inline, vertical, water cooling

Cabin

Flat roof, A/C

Cab Model

Ollin TX

Cab Width

1880mm

Cab Type

Sleeper cab

Passengers Allowed

3 Nos

Seats and Sleeper Line

Seats Line: font driver and co-driver   seats;

Sleeper Line: one sleeper

TRANSIMISSION,AXLE,SUSPENSION

Make

WANLIYANG Transmission

Model

WLY5T92

Type

Manual

Forward

5 Nos.

Reverse

1 Nos.

Casting Material

Steel

Front axle Model

2T

Front Axle Rating

1850 kg

Rear Axle Model

3T

Rear Axle Rating

2645 kg

Ratio

5.571

Suspension

Mechanical spring suspension

Leaf Spring

3/5+2

TIRES, BRAKES,OIL TANKS

Tire Size

7.50R16

Tire Nos

6

Brakes

Front wheel Disc brake, Rear wheel dump brake

Oil Tank Volume

120L steel

ABS

Yes
