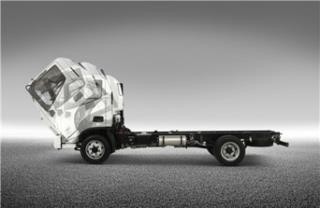

Swap Loader Hook Lift Chassis

Swap Loader Hook Lift Chassis

● FOTON AUMARK S3 4x2
● Truck Bed Length 3.8m
● Size 6×2.44×3.45m
● Light Duty Load 2 T
● Cummins 143ps Engine
● Ecological Class 5 Emission
● GVW 3.5/4.5/6/7.5/9.0/12/14T

Send Inquiry

Description

Swap loader Hook Lift Chassis

FEAURES

● FOTON AUMARK S3 4x2

● Truck Bed Length 3.8m

● Size 6×2.44×3.45m

● Light Duty Load 2 T

● Cummins 143ps Engine

● Ecological Class 5 Emission

● GVW 3.5/4.5/6/7.5/9.0/12/14T

● Cab Body length 1730/1880/2060mm

● Brake Hydraulic/Air

● Wheel Base 2490-5200

● Cabin Width 1880/2060

● Cabin Type Day /Sleeper/King/High roof

● Engine Cummins Model ISF2.8/ISF3.8

● Gearbox ZF Transmission


●SUPER EFFICIENCY

Budget-friendly High Market Acceptance

Swap loader Hook Lift Chassis 1

Swap loader Hook Lift Chassis 2  Swap loader Hook Lift Chassis 3

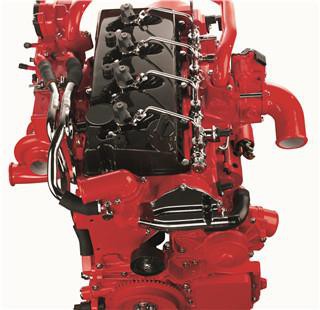

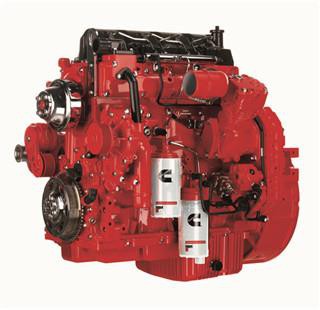

                    Cummins Engine                                                         E•S•P Multi-status Switch

Swap loader Hook Lift Chassis 4  Swap loader Hook Lift Chassis 5

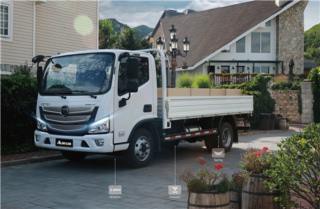

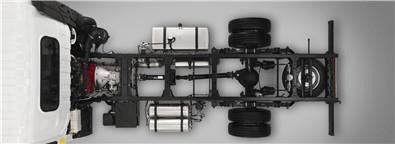

      Advanced rigid body and reduced weight                            Diverse lineups for applications

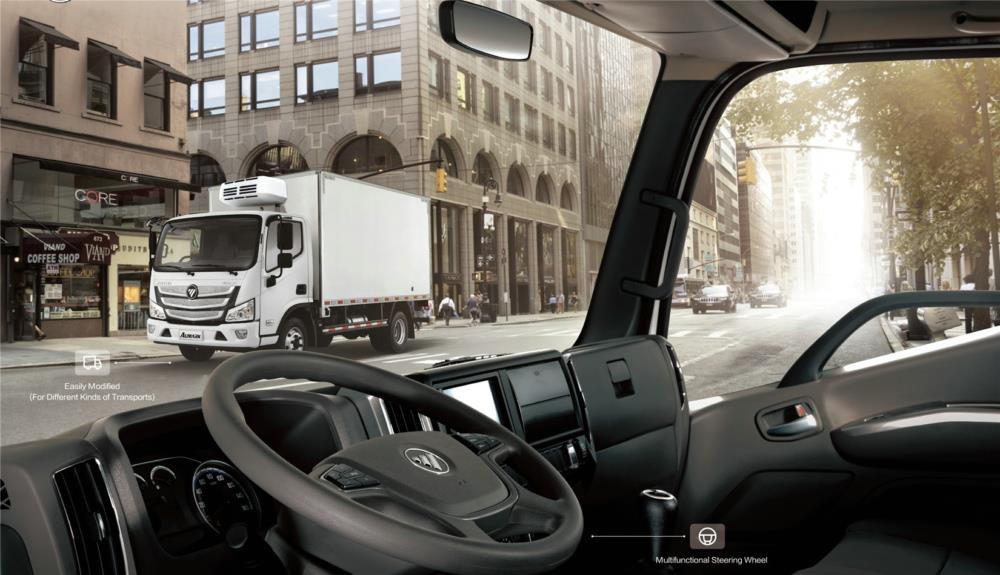

●COMFORTABLE CAR SPACE

Swap loader Hook Lift Chassis 6


●SURGING POWER OUTPUT

Latest Foton-cummins Power Overall Improvement

Swap loader Hook Lift Chassis 7

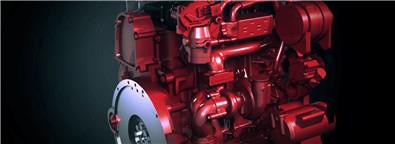

ISF 2.8 diesel engine offers advanced thermal engineering, electronic integration, High Pressure Common Rail fuel system and wastegate turbocharger, which is ideal for light commercial vehicle applications.

POWER: 107 – 160 hp

●COMFORTABLE CAR SPACE

Swap loader Hook Lift Chassis 8

●SURGING POWER OUTPUT

Swap loader Hook Lift Chassis 9


Swap loader Hook Lift Chassis 10





Latest Foton-cummins Power Overall Improvement

ISF 2.8 diesel engine offers advanced thermal engineering, electronic integration, High Pressure Common Rail fuel system and wastegate turbocharger, which is ideal for light commercial vehicle applications.

POWER: 107 – 160 hp                          POWER: 141 – 168 hp

TORQUE: 206 – 265 ft-lb                        TORQUE: 331– 442 ft-lb

CERTIFICATION: EURO 3


Swap loader Hook Lift Chassis 11
Swap loader Hook Lift Chassis 12

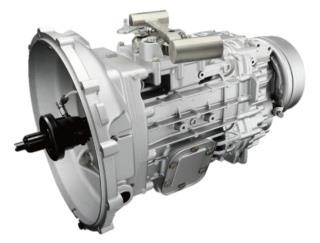

ZF 6S 500 transmission, with light-weight, aluminum housing, optimized gear ratio for low fuel consumption, low noise emission through optimized helical gears, interlock system to prevent mis-shifts.

Input Torque: max 500N•m / Speed Ratio Range: 7.94 / Weight: 90 kg

Swap loader Hook Lift Chassis 13


●SAFER

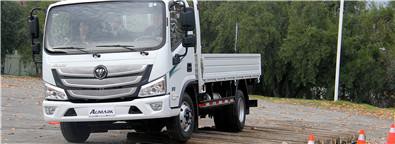

In 80km/h emergency situation, brake offset of only 0.8m. Vehicle crash safety meet ECE R29 regulatory requirements.

Active and Passive Safety



Swap loader Hook Lift Chassis 14

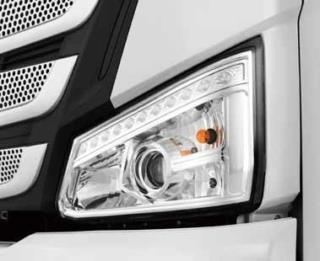

                          DRL

Swap loader Hook Lift Chassis 15

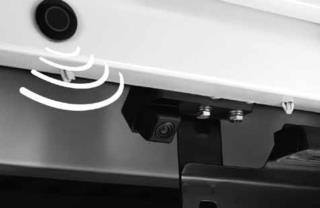

           Reverse Radar

Swap loader Hook Lift Chassis 16

                  LDWS



Swap loader Hook Lift Chassis 17




AUMARK S experiences 1.6 Million km Road Test, and diverse working conditions tests, including durability testing, reliability testing, stability test, high–low temperature testing, highland testing and etc.


Swap loader Hook Lift Chassis 18Swap loader Hook Lift Chassis 19Swap loader Hook Lift Chassis 20

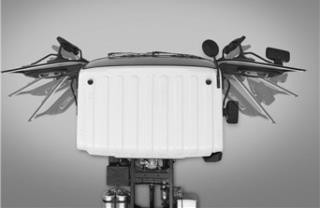

Open the door at different angles   Help users better maintenance

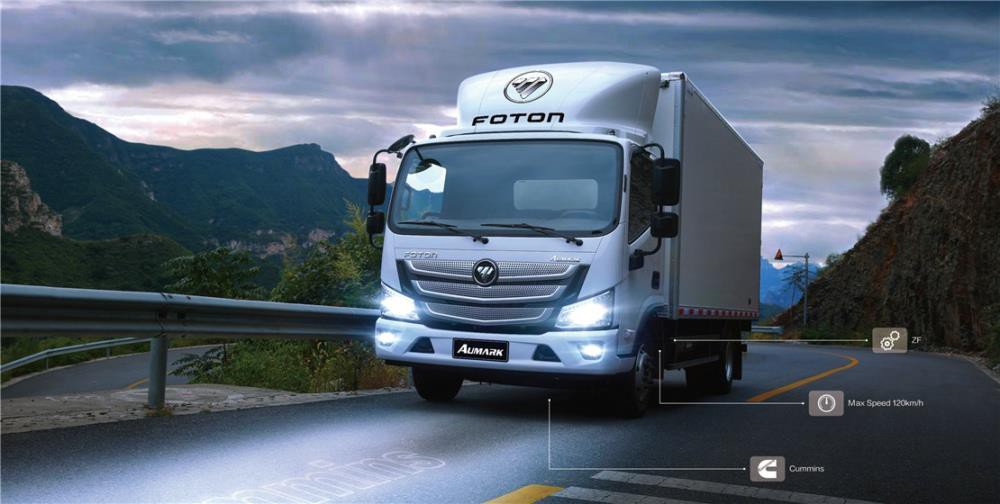

FOTON AUMARK S has integrated Splendid supply chain including Cummins, ZF, BOSCH, EATON, and etc., meets the E.C.E. regulation.



GENERAL INFORMATION

Chassis   Model

BJ5048XXY-FK

Chassis   Type

Special   truck chassis

Drive   Mode

4×2

Wheelbase

3360   mm

Cab   to Rear

4.2   m

Engine

130   hp

Transmission

5+1 speed

Chassis   length in

6   m

Chassis   width in

2.4   m

Chassis   height in

3.45   m

Chassis   Tare Weight

8Ton

Recommended   Loading

10   Ton

Gross   Vehicle Weight

18   Ton

Max Driving Speed

100 KM/h

Manufacturing   by

Hehui   Factory

Loading   Type

Medium   duty

Approach   Angle

Departure   Angle

18°

10°

Front   Overhang

Rear   Overhang

1120mm

1515mm

Front   Track

Rear   Track

Front   1590mm,1730mm

Rear   1485mm,1615mm

ENGINE

Make

FOTON   Cummins Co.,Ltd

Model

ISF2.8s5F130

Series

FOTON   2.8

Cylinders

4   nos.

Fuel   Type

Diesel

Cylinder   Lineup

Vertical   in line

Displacement

3.76   L

Ecological   Class

5

Max   Output in kw

105

Max   Output in ps

143

Max   Torque

440   N·m

Max   Torque at rpm

1200-2200

Output   at rpm

2600

Engine   Type

Turbocharged,   Common Rail, Direct Injection+SCR

Cabin

Covered   with double layer steel plate; With inner A/C

Cab   Model

S3

Cab   Width

2060mm

Cab   Type

Sleeper   cab

Passengers   Allowed

3   Nos

Seats   and Sleeper Line

Seats   Line: Front driver seat & Co-driver seat.

Sleeper   Line

TRANSIMISSION,AXLE,SUSPENSION

Make

Wanliyang   Transmission

Model

WLY6T120

Type

Manual

Forward

6   Nos.

Reverse

1   Nos.

Casting   Material

Steel

Front   axle Model

2.85T

Front   Axle Rating

6500   kg

Rear   Axle Model

7.5T

Rear   Axle Rating

2440   kg

Ratio

4.875

Leaf   Spring

3/8+6

TIRES, BRAKES,OIL TANKS

Tire   Size

7.50R16LT   6PR

Tire   Nos

6

Brakes

Air   brake

Oil   Tank Volume

120L   Steel

ABS

Yes
