● End water flow ≥13200LPM
● Water pressure ≥-.4Mpa @ flow ≥13200LPM
● Floating Pump pressure ≥ 0.3MPa, water flow ≥ 13200LPM
● Truck mounted pressurized pump pressure ≥ 0.9MPa, rated flow ≥ 13200LPM
FEATURES
● End water flow ≥13200LPM
● Water pressure ≥-.4Mpa @ flow ≥13200LPM
● Floating Pump pressure ≥ 0.3MPa, water flow ≥ 13200LPM
● Truck mounted pressurized pump pressure ≥ 0.9MPa, rated flow ≥ 13200LPM
● Super Distance Hose Length ≥ 3000m
● Hose diameter ≥ DN300mm, one extrusion processed water hose
● Temperature -25℃～+46℃
● Operation Time ≥ 72 hours
SPECIFICATION
| Chassis Truck | Chassis Make | SINOTRUK |
Chassis Model | SITRAK | |
Drive Mode | 6×4 | |
Overall Size | 11050×2496×3730 (mm) | |
Wheelbase | 4600+1400mm | |
Gross Weight | 34000kg | |
Engine Make | SINOTRUK | |
Engine Model | MC11.40-50 | |
Horse Power | 297kw, 403hp | |
Torque | 1900N.m@1000-1400RPM | |
Cab | M, front cab | |
Cab Seats | 2+4 | |
Truck Speed | 80 km/h | |
Fuel Tank Capacity | 400 L aluminum | |
Transmission | HW20716AC automatic | |
Pumper System | Suction Pump Unit | Mounted in the pump room |
Pressurized Pump | Mounted in the pump room | |
Control System | Mounted at Rear of the cabin | |
Pump Room | Rear Mounted | |
Pump System | Function with water pumping and pressurize | |
Suction Pump Unit | Floating Pump | Independ Pump Unit |
Hydraulic System | Equipped | |
Hydro Hose Reel | Hydro powered | |
Hydraulic Control System | Equipped | |
Generator | Diesel Engine | |
Floating Pump | Rated Flow Capacity | ≥13200LPM |
Pump Lift | ≥30m | |
Weight | ≤150kg | |
Outlet Size | 250mm | |
Features | Pump body, impeller, frame with non-corrosive dealing processing. | |
Power Type | Hydraulic powered by hydro motor | |
Hydraulic System | Power By | Independent engine |
Working Pressure | ≥25MPa | |
Speed | ≤1800RPM | |
Features | Hydraulic pump, control valves, hydraulic motor the key components are all imported with world brands. | |
Hydraulic Hose Reel | Power By | Hydraulic system |
Hose Length | ≥60m | |
Operation Control | Automatic out and back by Hydro powered | |
Hydraulic Control System | Control | Manual and Automatic, when automatic control failures , could manual operated ensure the system could pump water non-stop. |
Generator | Type | Independent Cummins Diesel Engine with horse power 170kw. |
Pressurized Pump Unit | Type | Consist with Engine, Pressurized pump, outlet |
Engine | Cummins Diesel engine horse power 380kw | |
Pressurized Pump | Double suction pump, pressure ≥ 0.9MPa, flow ≥ 13200LPM | |
Outlet/Inlet | Pump inlet 250mm, Outlet 300mm, stainless steel pipeline, saltwater proofed. | |
Clutch | Equipped |

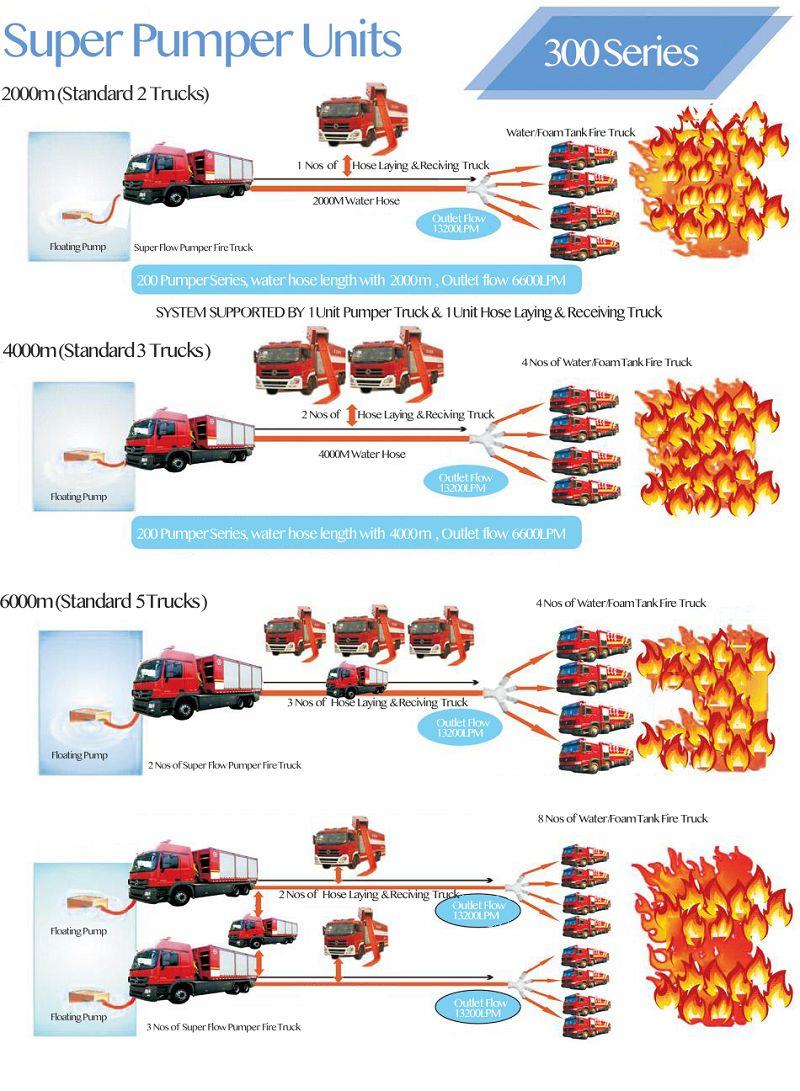

The Pumper truck could work combined with the Hose Laying & Receiving Truck as a super long distance watering truck for water/ foam firefighting truck features as following:
The Super Long Distance Watering Truck System is saltwater proof, all related the models are all serviced in fire brigade.
Model | 300 Series | 200 Series | 150 Series |
Outlet Flow | 13200 LPM | 6600 LPM | 3600 LPM |
Pipe Diameter | 300 mm | 200 mm | 150 mm |
Water Transfer Distance | 2000m | 3000m | 3000m |
Pump Station Pressure | 0.9 MPa | 1.6 MPa | 1.6 MPa |
Vertical Suction Deeply | 20m | 50m | 50m |
Horizontal Suction Length | 50m | 50m | 50m |
Floating Pump | 1/2 | 1/2 | 1/2 |
Hose Carries | 2000m | 3000m | 3000m |
