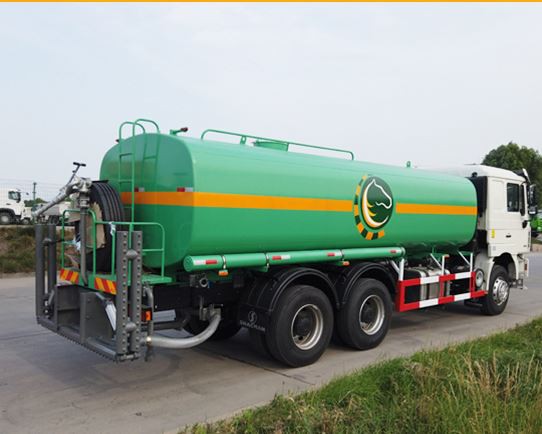

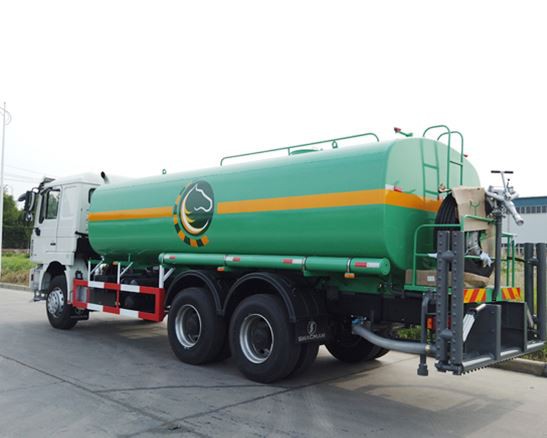

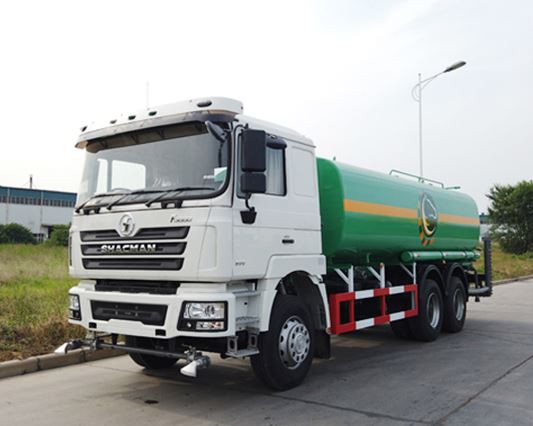

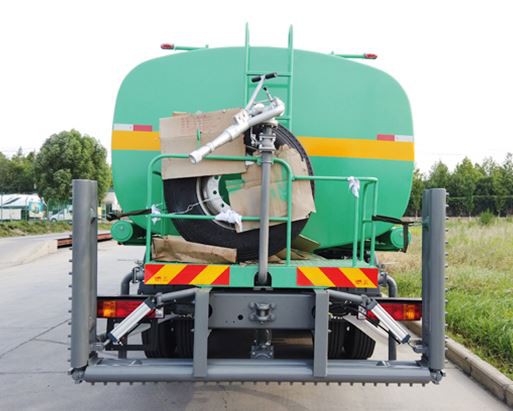

6x6 WATER TRUCK DISTRIBUTION DRINKING WATER Burundi

1)    General

Truck Model

CSC 3255DU385

Driving Type

6*6 Left-hand drive

Water tank Capacity

10,000 liters

Chassis Truck

SHACMAN F3000

Color

Yellow/blue/white

Overall Size

8329×2490×3450mm

GVW

GVW≤50,000 kg

Wheelbase

3775+1400 mm

Oil Tank capacity

400L, made in aluminum material

2)    Engine

Make/Model :

WEICHAI, WP12.400E201

Cylinder No.:

6 cylinders inline

Power:

400HP /294kw

Max.Torque:

1800 N.m／1000-1400rpm

Type:

Diesel, supercharged and intercooler (turbocharged), direct injection,

Displacement

11.596L

Emission

Euro II

3)Transmission

Make/Model :

FAST/FAST 10JSD180+QH50

Gear Numbers:

10-forwards, 2-reverses

Ratio

14.86 11.02 8.07 6.02 4.46 3.33 2.47 1.81 1.35 1       R14.24 3.19

Transfer case

ZQC2000

Type:

Manual

Synchronizer :

Yes

Input Torque :

1800N.m

Dry weight

325kg

4) Clutch

Diameter

Φ430 mm

5) Suspension

Front

Semi-elliptic leaf springs

Rear

Semi-elliptic leaf springs

6) Front Axle

Type

driving axle

Number

1(one)

Rated Axle Loading

9000kg

Make

HANDE (MAN technology)

7)Rear Axle

Type

double reduction drove axle

Number

2 (two)

Rated Axle Loading

2*16000kg

Make

HANDE (MAN technology)

Track

1860mm

Section size

169*166*19mm

Input/output flange

Φ180(serration)

Gear ratio

5.262

Brake size:(drum brake)

Φ410*220mm

Axle weight

F.R.axle: 950kg

R.R.axle:840kg

8) Brake

Running brake

Dual circuit compressed air brake

Parking brake

Rear wheel spring power brake

Assistant brake

Exhaust braking   WEVB

9) Tire

Size

12.00R20

Brand

DOUBLE HAPPINESS or equivalent

Load Index

156/151

SPEED GRADE

K

Type

Tubeless

Number

10+1pcs spare tire with carrier

10) Cabin Assembly

Model/Make

F3000 /SHACMAN

Type

One sleeping bed, Four points hydraulic mount cab

Equipment 1

Manual window lifter,

Equipment 2

Manual overturn

Equipment 3

Ordinary warm air

Equipment 4

Hydraulic main seat,

Equipment 5

165Ah maintenance-free battery,

Equipment 6

Metal bumper

11) Cistern

Capacity

10,000 liters

Material

high-quality stainless steel  304-2B (food grade)

Thickness:

3.5mm

Water tank outer dimension:

4900*2000*1300mm

Ladder

With
