SINOTRUK HOWO 4x2 Chassis Truck
SINOTRUK 290HP Diesel Engine
10F+2R Manual Transmission
12,000L Capacity Tank
Weilong/JUROP/MORO/BP Vacuum Pump
DESCRIPTION

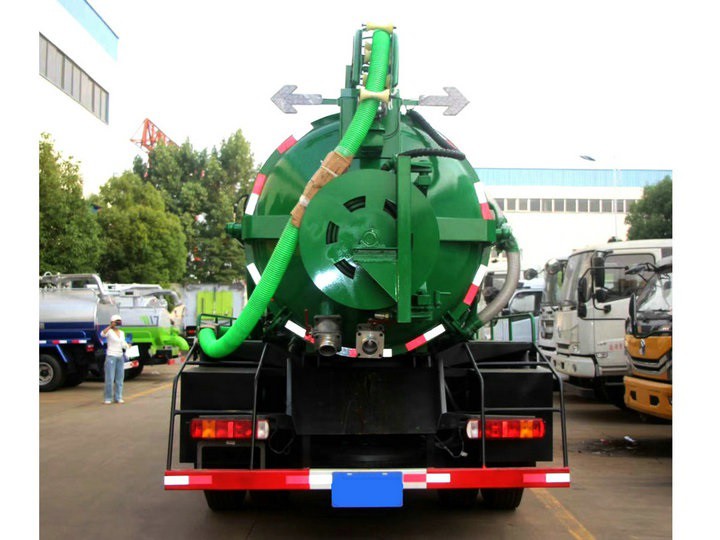

The CSC Combined Vacuum Unit Tanker is a vehicle that combines the functions of a jetting truck and sewer tanker. It can integrate washing, dredging, sewage suction, etc. It can effectively reduce the number of vehicles and personnel and the number of round trips, which can greatly improve work efficiency and save time and cost; mainly used for the suction, transportation, and unloading of sewage, sludge, sand, and gravel, and large blocks of various underground sewage pipes, rainwater wells and manholes in the city. Combined Vacuum Unit Tankers can also be used for sewage and industrial waste of large factories and mines. The suction and transportation of oil and wastewater and the dredging and dredging of small rivers.
FEATURES
Chassis | |
Size | 8,130×2,500×3,320mm |
GVW/Curb Weight | 23,000kg/8,575kg |
Wheelbase | 4,600mm |
Front/Rear Axle | 7T/16T |
Tire | 295/80R22.5 6+1 tires |
Engine | |
Type | Diesel |
Make/Model | SINOTRUK/WD615.87/290hp/Euro 2 |
Transmission | |
Make/Model | SINOTRUK/HW13710 |
Gears | 10F+2R |
Operation | Manual |
Cabin | |
Driving | SINOTRUK HOWO 4×2 Day Cab, Left/Right-hand Drive |
Type | Steel construction, Single Row, Flat |
Passenger No. | 3 |
Body System | |
Capacity | 12,000L |
Shape | Cylindrical |
Material | Q235B Carbon Steel |
Thickness | Shell Cover 8mm, Tank Body 6mm |
Vacuum Pump | |
Type | Water Cooling or Air Cooling |
Brand | Weilong, JUROP, MORO, BP |
Flow Rate | 6,000~35,000LPM |
Ultimate Pressure | -97000Pa |
Suction Hose Length | 8 meters + optional 4 meters |
High-Pressure Jetting Pump | |
Drive-By | PTO |
Working Pressure | 16-24Mpa |
Water Flow Rate | 75~275LPM |
Reel Hose | 80 meters + optional 40 meters |
Water Tank | Front or side installed |
Basic Equipment |
Vacuum pump, ball valve, suction pipe, pressure meter, inspect windows, cleaning systems, hoist base, oil-water separators, overflow valves, etc. |
Optional Equipment | Tanker material: stainless steel. Vacuum pump: Italy or Spain vacuum pumps. Anti-rust coating inside tankAnti-flow devices |
