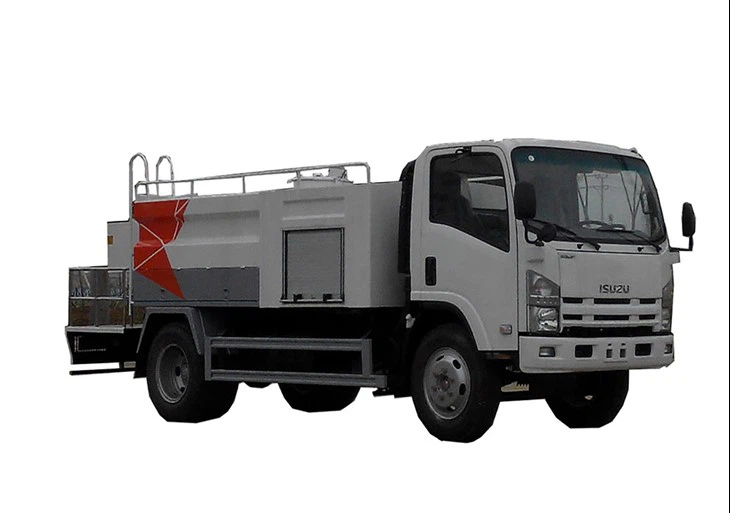

ISUZU Sewer Jetting Truck 4CBM

BRIEF



The CSCTRUCK sewer jetting truck serves the purpose of applying high-pressure water to sewer lines, employing a combination of flushing and thrusting actions through a pressurized water hose and a sewer jetting nozzle. Utilizing the force of high-pressure water jets, sewer jetting truck eradicates blockages within the sewer line effectively. Any remaining waste material is either naturally eliminated by the flow of the sewer or directed toward the manhole opening for collection by a vacuum truck.

This specialized vehicle is specifically designed and constructed to cater to the unique requirements of municipal sewers, sanitary and storm sewer lines, laterals, and drainage lines. Sewer jetting truck takes into account factors such as the city's infrastructure, sewer canal diameters, and the characteristics of the sludge being handled. The CSCTRUCK sewer jetting truck is available in various configurations, mounted on 4x2, 6x4, and 8x4 trucks chassis, each equipped with different tank capacities and pump capabilities.

The primary objective of a sewer jetting truck is to ensure the cleanliness and unobstructed flow of the sewer system. By employing high-pressure water technology, it efficiently tackles clogs and blockages, maintaining the optimal functioning of the sewer network. The CSCTRUCK sewer jetting truck plays a crucial role in preserving public health and the environment by preventing sewage backups, reducing the risk of contamination, and promoting the efficient disposal of wastewater.



FEATURES



• We offer a range of chassis options including ISUZU, Sinotruk, Shacman, FOTON, Dongfeng, and others, along with pressure pumps from Italy. Our high-pressure sewer jetting truck is designed to deliver exceptional performance on-site, with its high pressure, large output, and ability to work continuously for extended periods. This makes it the ideal choice for pipelines ranging from 150mm to 800mm.
• Our services include hydrodynamic drain line cleaning, high-pressure surface cleaning, and high-pressure industrial cleaning.
• For narrow roads or residential operations, we have small jet cleaners available, while large sewer jetting trucks are suitable for public areas.
• We utilize imported high-pressure water pumps from Europe and America, ensuring higher water pressure and flow.
• Our sewer jetting trucks come with spacious storage areas that can accommodate tools, equipment such as mobile power supplies, and portable pipeline detectors.
• The dredging winch on our sewer jetting trucks can rotate horizontally by ±160 degrees, greatly enhancing the vehicle's adaptability to different dredging positions.
• Hydraulic retractable options are available, enabling reciprocating dredging and cleaning of sewer pipes. This improves the cleaning effectiveness and reduces operator labor intensity.
• The vehicle's fashion design showcases a handsome and stylish appearance, with human-centric and visually appealing details that demonstrate our unique craftsmanship. It is built on domestically-made chassis, providing excellent value for money, and is backed by a comprehensive after-sales service guarantee system.



SPECIFICATION



General
Truck Model	CSC5071GQX
Overall Dimension	5980x1920x2450mm
Chassis Brand	ISUZU
Chassis Model	QL1070
Driving type	LHD
GVW	7300kg
Curb weight	4060kg
Axle No.	2
Wheelbase	3360mm
Approach / Departure angle	24/14°
Tire No.	6+1spare tire
Tire Specs.	7.00R16 7.00-16 optional
Max. Speed	95km/h
Front axle capacity	2580kg
Rear axle capacity	4720kg
Springs	8/6+5
Front-wheel trace	1504mm
Rear wheel trace	1425mm
Engine
Brand	ISUZU
Model	4KH1-TCG40
Horsepower	120HP
Displacement	2999ML
Emissions standard	Euro4
Max. Torque	290N.m
Max. rotated speed	2900rpm
Type	4 Stroke, Inter-cooling Turbo-Charged, 4-cylinder
Transmission
Brand	ISUZU
Model	MSB
Forward/reverse	5F/1R
Type	Manual
Cab
Type	Single-Row Cab with Air Conditioner
Color	Usually white
Water Tank
Capacity	4CBM/4,000Liters
Material	High-quality carbon steel and stainless steel is optional
Thickness	4mm
Welding	machine welding automatically
Jetting Pump
Brand	PRATISOLIO KF36
Origin	Italy
Type	High-pressure plunger pump
Pumping speed	122L/min
Pressure	16Mpa/800rpm
Installed	High-quality split-shaft-PTO to drive it
Jetting system parts
Pressure pipe diameter	25mm or 19mm /DN19 or DN25
Pressure jetting hose length	60-100m is optional
Brand	Domestic or USA or Italy are optional
Water feeding system
Special water feeding system	installed on the assembly part which used to feed water into the water tank
High-pressure nozzles
Brand	Domestic or USA or Italy are optional
mushroom nozzle	3/4”,1pc
grenade nozzle	3/4”, 1pc
diamond nozzle	3/4”, 1pc
Cleaning pipe reel optional
Length	15m
Pipe reel with nozzle	1pc
Control Box
Quantity	1pc
Stainless steel box	With all operation buttons on the panel
