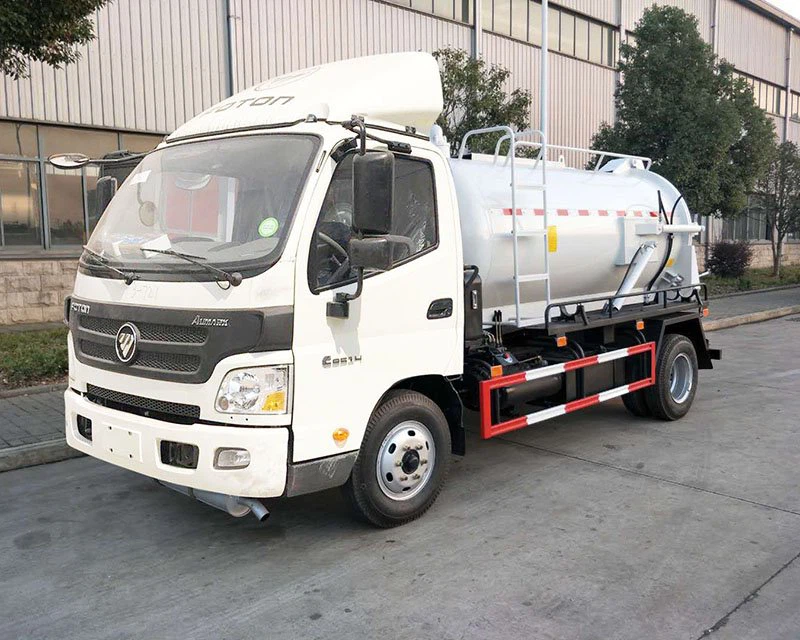

Toilet Vacuum Tanks 4cbm

Cabin

Single   row/W1995/right rudder

Whole vehicle's main   dimensions

Overall dimensions (LxWxH)mm

6725×2100×2280

Wheel base(mm)

3800

Weight data

Curb weight(kg)

3305

Gross vehicle weight（kg）

6500

Persons in cab

3

Whole vehicle's main   performance

Max. speed（km/h）

95

ENGINE

Model

F3.8s3141

Emissions standards

EuroⅢ

Displacement（L）

3.76

Rated Power（kW/rpm）

105

Max torque （N.m/rpm）

450

Gearbox

Model

6TS55

Front axle

Type/Mainreducetion ratio

2.5T

Rear-axle

Type/Mainreducetion ratio

6.0T/4.875

Suspension

Front suspension/Leaf spring   number

9

Rear suspension/Leaf spring   number

11+7

Brake system

Service brake

Drum pneumatic   braking

Parking brake

Brake gas brake

Auxiliary brake

Engine exhaust   brake

Wheels and tyre size

6+1(8.25R16)

Dimensions

Sectional shape: the perfect circle

Tank material   and thickness

Part of the   tank material、thickness： Q235B carbon steel, 5mm

Head material   and thickness: Q235B carbon steel, 5mm

Wave breaker

Quantity: 1

Material   thickness: Q235B carbon steel, thickness 4mm

Sewage suction   pump

Quantity: 1

Brand: Yifeng SK-6

Rotation speed of sewage   suction pump: 1450r/min

Pumping speed of sewage   suction pump: 100L/S

Absolute working pressure:   7000Pa (93%)

Pump quality: 60kg

Power: 11KW

Depth of dirt   absorption

7m

Full time

≤5min

power takeoff

Quantity: 1

Lifting cylinder

Quantity: 2

Lifting   cylinder: 63*35*650mm, 16MPa

Sealing cylinder   with head

Quantity: 2

Multi-way valve

Quantity: 1               Two-way valve

Specification:   DN20     Control method: manual

Hydraulic oil   pump

Quantity: 1

Material:   aluminum alloy

Flow: #63

Vacuum pressure gauge

Quantity: 1

Material:   Stainless steel

Pressure:   -0.1-0Mpa

Hydraulic tubing   material

Rubber steel   wire hose

Anti-overflow   device

Quantity: 1

Material   thickness: stainless steel

Liquid level   alarm

Quantity: 1        Material: SUS304

Suction port

Specification:   DN100, aluminum alloy

Control method:   manual

 Length of suction pipe: 6 meters

 Sewage suction pipe length: 6 m

Discharge port

1 self-draining   port at the head and tail

Gravity head-tail port 1

Specification: DN150, aluminum alloy

Control method: manual

Stained window

Quantity: 1

Material:   organic glass

Thickness: 6mm

Climb the ladder

The welded non-slip   ladder on the driver side of the tank

Top guard

Protective handrails are installed on both sides of the tank top

Anti-skid plate was installed on the top of the tank

Top of the tank mounting cleat

Material of tank   foot auxiliary beam

Q345 manganese   steel
