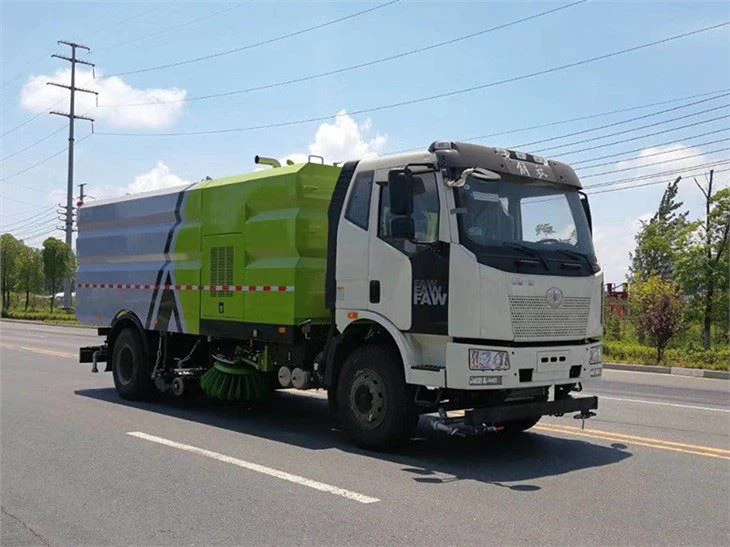

FAW Highway Sweeper Washing Truck

FAW Highway Sweeper Washing Truck adopts the installation of an auxiliary engine, fan, high-pressure water pump, clean water tank, garbage tank, left and right vertical sweeping, wide suction nozzle with water spray rod, low-pressure washing system, sweeping and dust-reducing system, hydraulic system, the electronic control system of safety device and Subframe, etc. are modified. The auxiliary engine drives the fan and high-pressure water pump, and the auxiliary engine adopts a Cummins diesel engine.

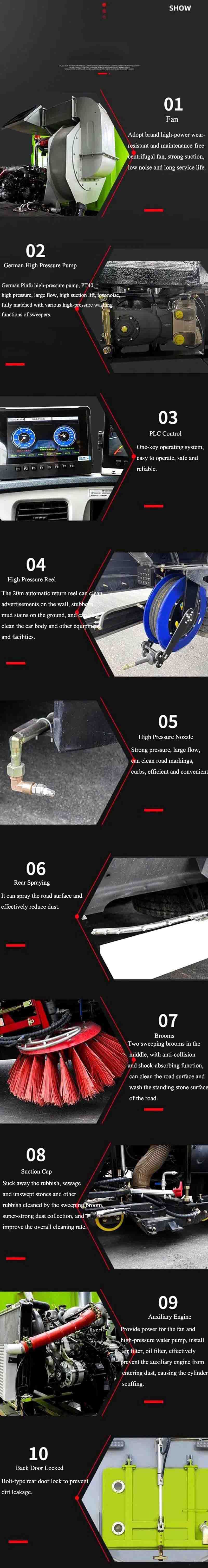

Main points of high pressure: front flushing/side flushing/middle spraying/rear spraying/flushing water gun/garbage tank self-cleaning/universal high-pressure road edge cleaning and other functions; all the nozzles are equipped with stainless steel imported matching heads; imported low-pressure pump (forward flushing); stainless steel water tank, stainless steel trash tank, stainless steel high-pressure pipeline.

German Schneider controller, Korean control box, intelligent electronic control system; color electronic control touch screen control; one-button control; video operation monitoring and reversing monitoring voice reminder; rear LED arrow light; oil, trash, and water tanks are equipped with overflow prevention Low water level alarm device; 18M high-pressure washing reel.

The fan adopts a high-pressure centrifugal fan with high precision and large air volume, and the air volume reaches 23500m/h. The high-pressure water pump adopts the first-class imported plunger rod and stainless steel pump head, with the suitable flow and high pressure, and the allowable pressure can reach 10MPa.
