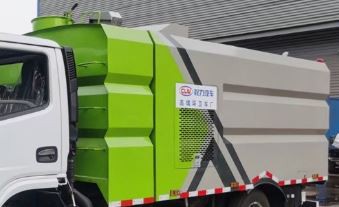

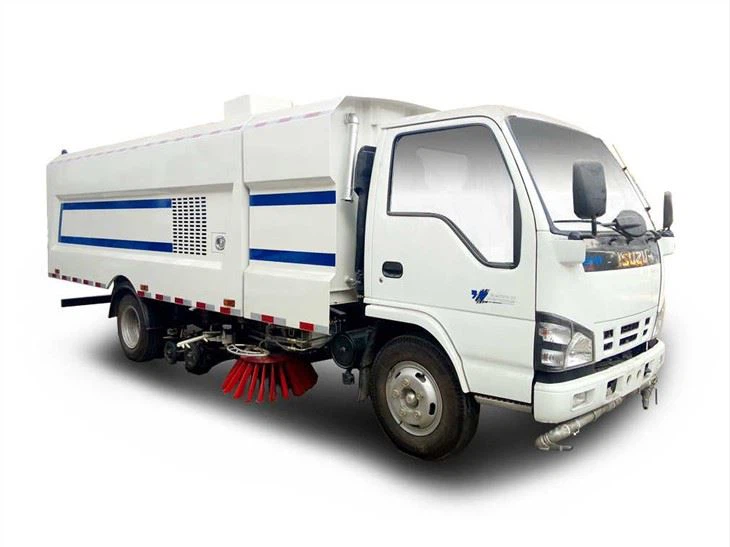

Street Flushing And Sweeping Truck

The hydraulic valve group adopts domestic well-known brands: The test pressure can reach 35MPa, and the flow rate can reach 300L/min. It can accurately test the dynamic, static performance and fatigue life of various industrial hydraulic valves and mobile machinery hydraulic valves.

The intake air quality of the auxiliary engine will directly affect the service life of the engine. In order to maximize the intake air quality of the engine, the intake port of the engine is set at the top of the box to make the intake air of the engine cleaner.

Hydraulic system filter adopts well-known brands: to keep the hydraulic system clean, the original hydraulic oil cooling technology is adopted, and the oil temperature is reduced by 10 degrees Celsius compared with similar products, which prolongs the service life of the hydraulic oil, and the hydraulic system has overload protection. The device fully guarantees the safe use of hydraulic.

The fan is a well-known brand: in order to increase the overall cleaning effect of the sweeper, a high-pressure centrifugal fan dedicated to the well-known sweeper is used. More than 6-8 times of other fans of the same type, the overall cleaning effect is outstanding.

The high-pressure cleaning system adopts the plunger pump imported from Italy: the flow rate is large, the pressure is large, and the rated pressure can reach 12MPa, which can be effectively cleaned.

There are 4 sweeping brooms in the middle, and the suspension obstacle avoidance mechanism is adopted. It has automatic obstacle avoidance protection and automatic reset function. The sweeping disc drive motor adopts high-quality cycloid hydraulic motor, which has high working efficiency and long service life.

A large-area filter screen is installed on the top of the box to reduce clogging and ensure the smooth flow of suction. A diversion groove is set on the top of the tank to improve the dust reduction effect, make the garbage accumulation evenly, and improve the effective capacity.

Both the garbage tank and the water tank are made of extra-thick stainless steel, which is corrosion-resistant and greatly improves the service life of the vehicle.

The suction cup adopts a fully floating connection structure, which can fully ensure that the suction cup can follow the road conditions during the cleaning operation.

The emergency lifting system of the manual pump is adopted, which can lift the garbage body when the auxiliary engine fails to start, so as to facilitate maintenance.

PLC intelligent control, touch-sensitive LCD screen, can operate operations on the display screen, and detect vehicle usage.

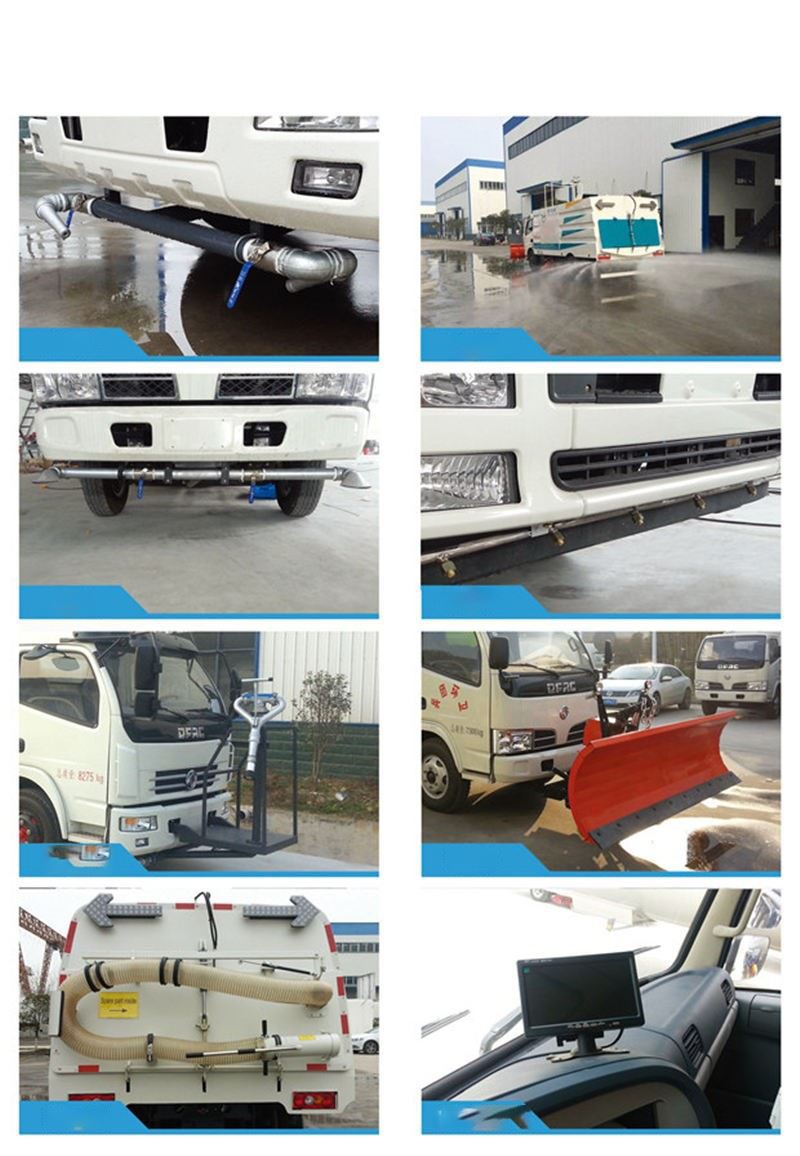

A variety of configurations are available. According to customer needs, snow shovels can be optionally installed, with sprinklers for front and rear sprinklers, etc.
