16CBM Large Road Sweeping Vehicle

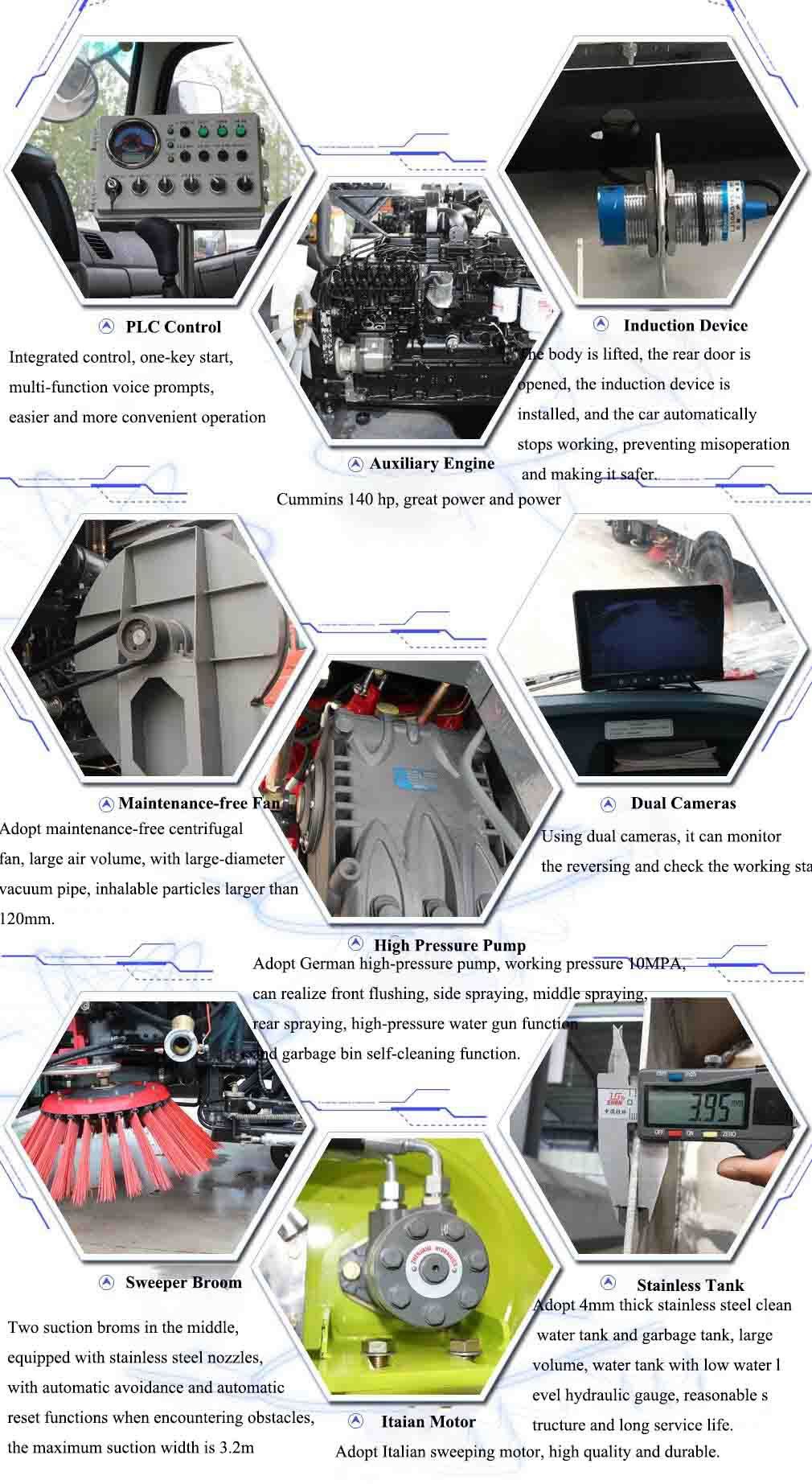

1. This 16CBM Large Road Sweeping Vehicle adopts the combination of suction and sweep to collect garbage, wet dust removal, electro-hydraulic control, and hydraulic tipping and unloading to clean the road surface.

2. The auxiliary engine is used to drive the fan and hydraulic system to ensure that it can continue to work during the driving process and to ensure the continuity of the cleaning process.

3. The structure of "center four-disc brush + rear suction nozzle" is adopted, which is convenient for the adjustment and maintenance of the cleaning device and suction nozzle, and the vehicle has good passability during transition.

4. The transmission between the auxiliary engine and the fan is equipped with an automatic clutch, which can ensure the automatic separation of the auxiliary engine from the fan when it starts and stops without load, reduces the impact on the auxiliary engine, and improves the working reliability and service life of the auxiliary engine. 5. The sweeper has the function of avoidance protection and reset function when encountering obstacles. It retracts after encountering obstacles and resets after crossing obstacles.

6. According to different cleaning conditions, without increasing the auxiliary throttle, the speed regulation of high, medium and low speed of the sweeping disc can be realized, which can ensure a good cleaning effect under various pollution conditions, and at the same time save fuel consumption and bristles. loss.

7. The Road Sweeping Truck adopts a full-floating nozzle that can be automatically leveled with the road surface, which has good cleaning effect and long service life.

8. The imported hydraulic valve group can ensure the stability and smoothness of the hydraulic action of the sweeper.

9. High-quality hydraulic motor can ensure the working stability of the sweeper and long service life.

10. The eversion-type vacuum cleaner made of imported raw materials can effectively prevent the vacuum cleaner pipe from being scratched and freeze-cracked and increase its service life.

11. Precision seamless cold-formed hydraulic oil pipe, no oxidation impurities on the inner wall, to ensure that the hydraulic oil circuit is clean and does not block the valve.

12. The high-performance engineering plastic spacer is used in the sweeping arm, which has good wear resistance, no need for butter and maintenance, and saves manpower and material resources.

13. Stainless steel water tanks and garbage cans can resist general corrosion and increase the service life of the box.

14. The ultra-wide rear door and the opening angle greater than 85 degrees make it easier to dump garbage and clean up the garbage tank.

15. The dumping angle of the garbage bin is greater than 46 degrees, which is easy to dump garbage.

16. It can be equipped with front flushing, rear spraying, spraying, self-cleaning reel, operation monitoring system, auxiliary suction pipe device, snow shovel, etc.
