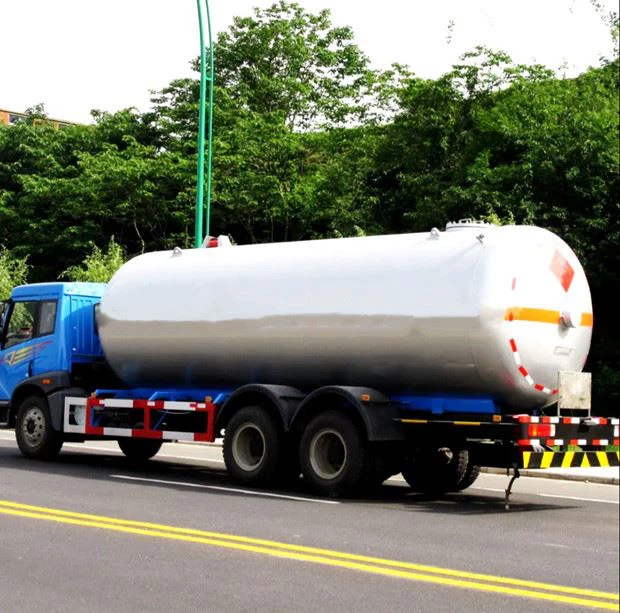

FAW 15m3 LPG Tank Truck For Transportation And Refueling LPG

Compliant with China's standard GB Tank volume: 15m3 FAW 6x4 Truck Chassis Equipped with a 260hp engine that meets the Euro 5 emission standard Known for its sturdy build, high level of security, and fast and easy operation, the 15m3 LPG tank truck is highly regarded.

Send Inquiry

Description

FEATURES

Tank Comply with China's standard GB
Tank volume: 15m3 Chassis: FAW 6x4 Engine: 260hp, Euro 5 emission standard
Filling device: household cylinders(50l) and cars (EVRO connector)
Design Temperature of tank wall: 50℃ Design Pressure: 1.8Mpa
Operation Pressure: 1.6Mpa
Tanker Material: Super Strength Carbon Steel Pressurized
Welding Process: Strict to guarantee the lowest contractibility rate and highest dimensional stability
Quality Control: 100% x-ray radiographic inspection and 100% magna flux inspection qualified
Surface: Anti-corrosion coating and processed with sand-blasting treatment, spraying, blowing, and other advanced technology
Standard Parts: Safety valve, level gauge, pressure gauge, thermometer, emergency shut-off valve, valve boxes, fire extinguishers, fire star cover, antistatic grounding tape, fencing, tires, and fenders
Components: Safety Fittings, Reliable Stainless-Steel Emergency shut-off valve, Pressure Gauge, Thermometer, Flow Meter, Filling valve, Intake valve of the gas phase, and liquid phase, Pressure gauge, Maximum overflow valve, Level sensor, Tanker access
Features: Sturdy, High Security, Fast, and Easy Operation

SPECIFICATION

Model	CSC5256GYQ
Overall Size	9500×2530×3380 mm (approx.)
GVW/Tare Weight	25000/14200kg (approx.)
Wheelbase	4350+1350 mm
Axles Nos	3
Tank Volume Total	15m3
Tank Volume Useful	12.75m3
Vehicle Speed	80km/h
Cabin Craft	3
Cabin Type	Day cab white color, with A/C, MP3, radio,etc
Chassis Model	CA1250
Chassis Make	FAW
Engine Model	CA6DLD-26E5
Engine Make	Xichai
Engine Power@rpm	26hp(195kw)@2300rpm
Torque@rpm	1050N.m
Engine Displacement	6600ml
Emission Standard	Euro 5
Transmission Model/Make	8JS125TA / Shanxi FAST
Transmission Type	Manual, 8 Speed forward, 1speed reverse
Steering	LHD
Brake	Air Brake
Electric	24V
Air Conditioner	Heating & Cooling
Steering	Powered
Clutch	Hydraulic assistance
Tire	12.00R22.5, 10+1 spare tire
Drive Mode	6x4
Tank Loading	LPG
Designed Pressure	1.8Mpa
Operation Pressure	1.6Mpa
Working Temperature	50℃
Ambient Temp, C°	-40…..+45
Tank Material & Thickness	Q345R, similer as 09G2S, 10mm
Type of Tank	Horizontal with one wall & two end covers
Valves & Fittings	Safety Valves, thermometers, pressure gauges, emergency shut-off valves, lever meters, fire extinguishers, anti-static grounding tape
Painting	High-quality Silver
Pump Brand/Model/Rotated Speed/Flow/Working Pressure/Power of General/Temperature Range/function	China brand, YQB15-5, 780rpm,15CBM/h, 1.8MPa, 5.5kw, -40~+80°C,filling device for household cylinders(50I) and cars(EVRO connector)
Flow Meter Brand/Model/Brand/Size/Flow/Accuracy/Max. Pressure/Unit	China brand, TCS40-C-1, 1.5”, 25-250L/min, +-0/2%, 145psi(10bar), Liter/US Gallon?LPM Gallon
Hose drum & Hose Length	40m
Additional Parts on Truck	Additional protection of the fuel tank, beacons, disabling the mass from the cab, wheel chocks, contour marking with improved reflective properties, and fire extinguisher.
