Dongfeng Truck Chassis
135HP Diesel Engine
Load Rating 3 Ton
Deck Length 5.4m
Lift Capacity 2 Ton
Winch Capacity 4 Ton
Chassis
Dongfeng Dollicar day cab,
Dongfeng Chaochai 136HP diesel engine,
Dongfeng 5 manual transmission gear box,
Front axle capacity 2.2 tons, rear axle capacity 4.2 tons,
Air brake with power steering.

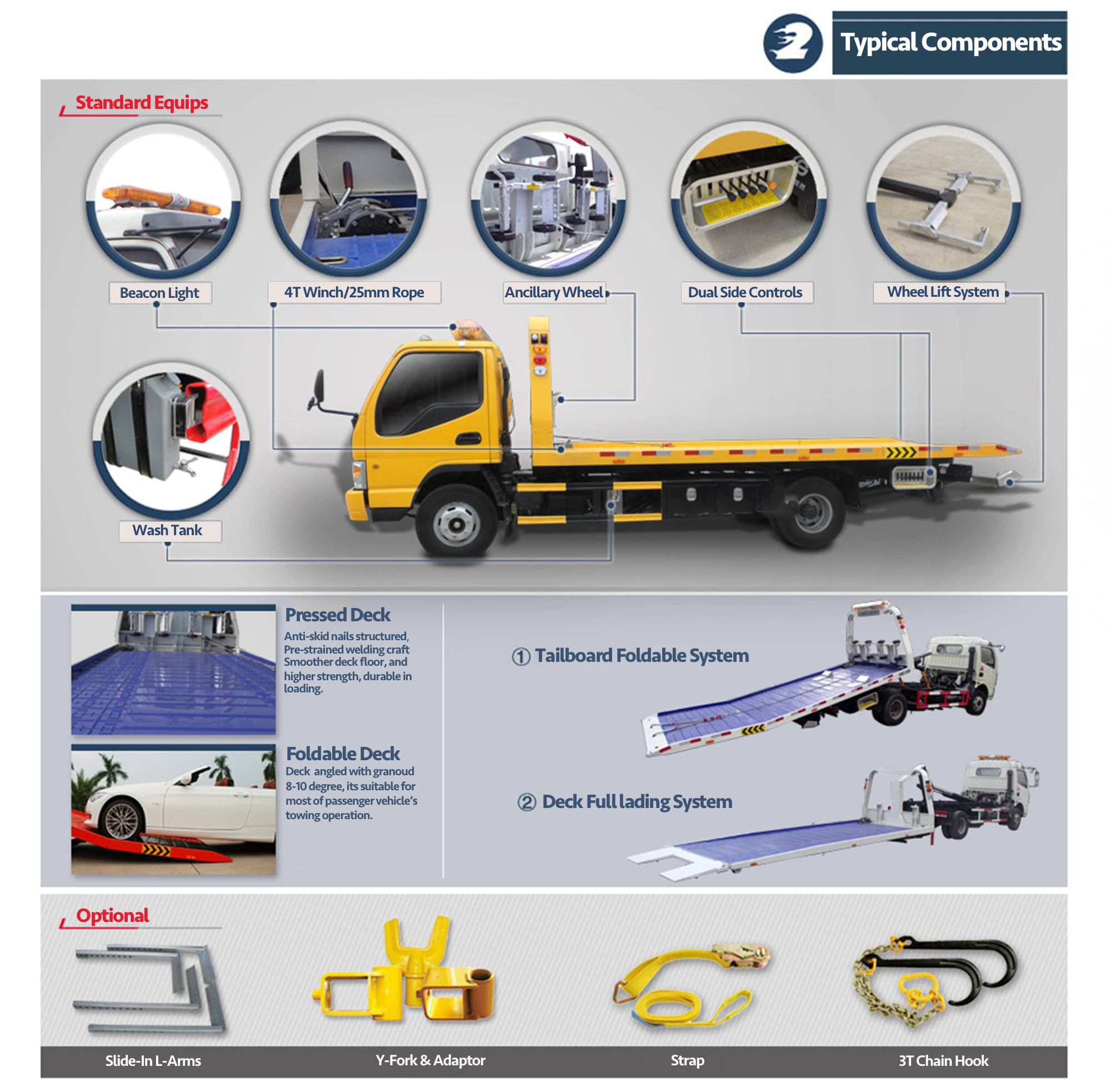

Structures
Features
Body model 3T3D1 punched flatbed,
Anti-skid nails structured, pre-strained welding craft,
Smooth deck floor, higher strength, durable in loading
Optional for foladable flatbed (rear tailbard), extendable rear ramp
Optional for deck full lading system
Light duty underlift, three section,
Combined operation control device,
Front bumper with a counterweight,
3 LED working lamp,
LED Amber Color Alarm
4000kg hydraulic winch (wire rope length in 25m),
One Stainless steel hand washing tank,
1 set of L type wheel receiver assembly,
5 sets of different size frame forks,
1 set frame fork adaptor ,
2 nos. Chain hook,
1 auxilliary trolley .
Performance
3T3D1 maximum towing capacity 5T,
Maximum flatbed loading capacity 5T,
Underlift lifting capacity at full extended 1.6T,
Maximum underlift lifting Capacity 2T,
Company Introduce
CSCTRUCK is a design, development, manufacturing, sales and service in one of the special automobile manufacturing enterprise specializing in the production of various types. One car carrier wrecker, 2 cars carrier wrecker, integrated towing wrecker, independent towing wrecker, rotator wrecker and other special wrecker trucks. CSCTRUCK company with advanced production technology, excellent production, one-stop production line. Awarded the National hundreds of thousands of customers. CSCTRUCK wrecker sold in top 10 in the seven consecutive years.
Technical Parameters
| |||
The total mass（kg） | 7695 | Curb Weight（kg） | 4500 |
Rated the quality of(kg) | Chassis Model | DFA1080S | |
Approach / departure Angle(°) | 24/19 | Front Overhang / Rear Overhang (mm) | 1210/980 |
Dimensions(mm) | 6990x2080x2480 | Compartment Dimension(mm) | xx |
Number of axes | 2 | Maximum speed(km/h) | 90 |
Tire Specifications | 7.50-16 | Number of tires | 6+1 |
Front track(mm) | 1770 | Rear track(mm) | 1586 |
Wheelbase(mm) | 1586 | No. of Spring | 8/10+7,11/9+7 |
Emission Standard | EuroⅣ | Type of fuel | Diesel |
Engine Parameter | |||
Engine Model | CY4102-CE4B | Engine Manufacturer | Dongfeng Chaoyang forward power Co., Ltd |
Engine Displacement (ml) | 3856 | Engine power(kw) | 100 |
Chassis Description
| 1. Dongfeng 4x2 chassis,single row flat cab, left hand drive with AC; 2. Chaoyang 4 cylinder 90HP diesel engine, 3. 5 transmission gear box; 4. Power steering, air-cut brake, 7.5-16 tire. | ||
