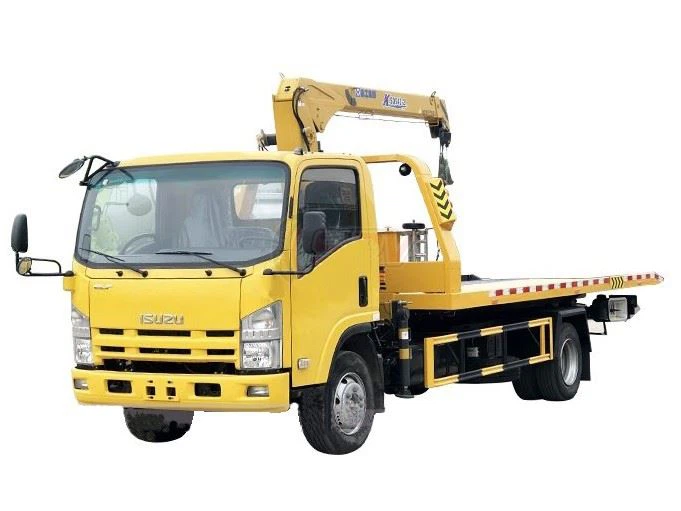

ISUZU 700P Flatbed Tow Truck With Crane

ISUZU 700P Flatbed Tow Truck

Complete with the following:

Model Number: CSC5110FBQL

-       Chassis Truck

ISUZU 700P 190 4×2 Left Hand Drive

5,200 mm Wheelbase

4HK1-TCG40 Engine, 190hp

700P Day Cab with AC

MSB-5M Transmission, Manual

Steel leaf spring Suspension

Drum Brake front and rear axle

235/75R17.5Tire with Spare Tire

-       Flatbed Assembly

Length 6200mm, width 2320mm

Flatbed Load 5,000kg, sliding

Tilt angle 10^o

-       Winch Assembly

1 No.s of 4,000kg Hydraulic Winch

Worm gear type

Cable diameter 10mm, length in 30m

Right/Left front deck corner mounted

-       Wheellift Assembly

Two Boom Weldment Extend

Crossbar Weldment

L arm ( right & left)

Wheel Grid

Lifting Rate Retracted 3,500kg

Lifting Rate Extended 2,000kg

-       Others

Complete hydraulic assembly

Dual side control hoods

Wire remote control

Light pylon in front of flatbed

Stainless door handles

-       Crane Assembly

XCMG Telescopic Crane SQ3.2SK2Q

3200kg Lifting capacity at 3.3m

Lifting moment 6.8 T.m

Hydraulic Oil flow 25L/m

Hydraulic pressure 20Mpa

Oil Tank Capacity 30L

Crane Weight 1105kg

360 ^o full rotation

850mm Install space after cab

-       Accessories

4 sets of different size Frame Fork

1 set of Fork Adaptor

4 pcs of Ratch Strap Tie Down

2 pcs of Towing Trolley

2 pcs of Hook Chain

Shipping Size 8.3×2.32×3.25m

Shipping Weight 7,200 kg
