3Ton Integrated Towing Wrecker Body

BRIEF

Standard Features

● Single Stage Boom, Optional 2nd Stage

● Boom Rating 8000lbs(3628kg) on first stage

● Boom Elevation 24 degrees Maximum

● 8000lbs (3628kg) Winch Worm Gear Optional Twin Line

● Lift Rating at Full Extension 4000lbs(1815kg) optionally 6000lbs(2722kg)

● Tow Rating 7000lbs(3175kg)

● Cross Bar Size 4 ×3.25inch

● Tilt Angles +12 to -11 degrees

● Reach Past Tailboard 42.25inch

● Maximum Reach Past Tailboard 62 inch

● Chassis Recommendations GVW 7000kg, Cab to Center of Rear Axle Minimum 1524mm, Optional 2134mm, or 2743mm

● Steel body with checkered plate deck

● Single stage boom and wheel lift

● Swivel scoop pans

● Single 8,000 lbs worm gear winch

● 50 feet of 3/8 wire rope

● Manual spring tensioner

● Two sets of frame forks

● Frame fork adapters

● Dual manual controls

● Weather stripping on all tool box doors

● Light pylon

Optional Available

● Single door 24" or double door 48" tunnel tool boxes.

● Twin line winches

● Cab-over tunnel tool box

● Custom paint and graphics

● Aluminum dress up kit

● Wired controls

● Complete wireless controls

● In-cab controls

● Aluminum body

● 84" CA custom body

● Full installation services

● Additional frame forks

● Custom attachments

● Extended warranty

Introduce

● 3 Ton Light duty Tow Truck Wrecker with steel or aluminum deck, single or two stage boom, single or twin line winches.

● 3 Ton Integrated Towing Wrecker is the front-line economy wrecker, suitable for towing all passenger vehicles and light duty trucks. This unit will quickly become one of your favorite wreckers for its ease of use and versatility. Our unique design shifts more weight to the front axles which gives you better grip when towing on snowy or wet days.

● Our 3 Ton integrated Wrecker is over-built to ensure durability and long-life; this will protect your investment and keep you on the road longer and hauling more vehicles faster. Owners and fleet operators alike will quickly discover that this light duty wrecker is the best value that's available on the market today.

Hydraulic System:

Hydraulic Circuit: The hydraulic oil pipe fabricated from high-pressure galvanized steel, pressure resistance, well thermal performance, attractive looks, durable use, the service life could be synchronized with the super body. Hydraulic fittings are bite type rigid connectors(Germany), has been greatly reduced the phenomenon of interface oil leakage, the service life could be synchronized with the super body too.

Reversing Valves: Adopt the Italy directional control valves, and optimized the installation to ensure the control valves works at safe operation under extreme conditions.

Oil Cylinder: The inner cylinder processed with boring and barreling, the cylinder inner walls more hardness, wear, bright and clean, which could full effective to protect seals.

Piston Rod:

Are all with heat treatment, hardness, thick chrome layer easy to deal with high-intensity operations. Full application of imported seal assembly from Germany, Britain and Italy Stepseal®. And it could adjust the seal assembly according to the different structure of the oil cylinders, attempt to get the cylinder in perfect working condition. The piston support ring with high temperature, wear resistance imported material meet the design needs we chose the dual support rings or large area of a single support ring structure. In process of wrecker operation, if the cylinder under a large lateral force, high standard support ring could ensure the cylinder working in a stable working situation, avoid the piston direct friction with inner piston rod and cylinder cover.

Oil Cylinder: The inner cylinder processed with boring and barreling, the cylinder inner walls more hardness, wear, bright and clean, which could full effective to protect seals.

Piston Rod:

Are all with heat treatment, hardness, thick chrome layer easy to deal with high-intensity operations. Full application of imported seal assembly from Germany, Britain and Italy Stepseal®. And it could adjust the seal assembly according to the different structure of the oil cylinders, attempt to get the cylinder in perfect working condition. The piston support ring with high temperature, wear resistance imported material meet the design needs we chose the dual support rings or large area of a single support ring structure. In process of wrecker operation, if the cylinder under a large lateral force, high standard support ring could ensure the cylinder working in a stable working situation, avoid the piston direct friction with inner piston rod and cylinder cover.

RECOVERY TOOLS

Standard equipped two of a pair of (02pcs) axle forks as following.

Not standard equipped. This forks for option with the above axle type forks.

Standard equipped two of a pair of (02pcs) axle forks sleeves as following.

Standard equipped two of a pair of (02pcs) axle L-arms as following:

Standard equipped 06pcs strap as following:

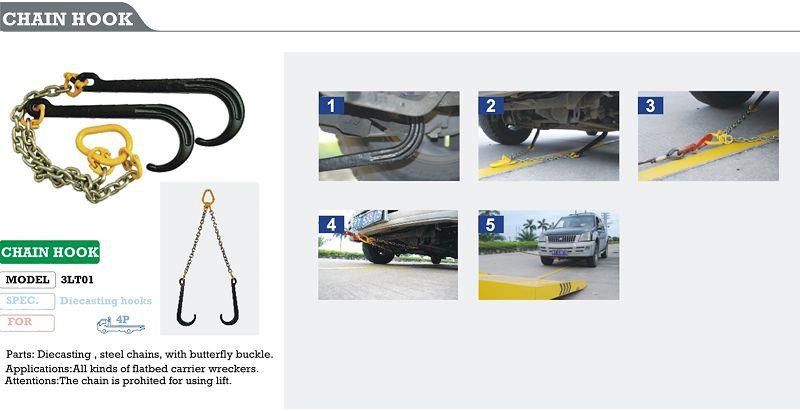

Standard equipped 01pcs Chain Hook as following:

Standard equipped 02 pcs Auxiliary Wheel as following:

SPECIFICATIONS
