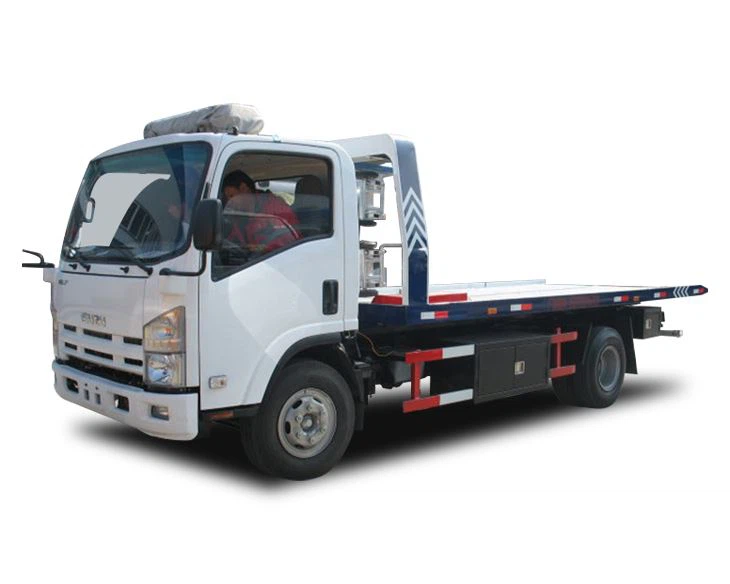

5 Ton Slide Bed Tow Truck

BRIEF



A slide bed tow truck is a valuable asset for road recovery operations, capable of effectively removing broken down or accident vehicles to ease traffic congestion. With its 5-ton capacity, this equipment can handle vehicles safely, quickly, and efficiently, making it an ideal solution for addressing vehicle-related road problems. Its slide bed feature allows for easy loading and unloading of vehicles, and its ISUZU truck chassis ensures reliable performance even in challenging conditions. With a recovery truck, recovery operations can be quickly completed and with minimal disruption to traffic flow, making it a key tool for traffic management and ensuring road safety.



FEATURES



Standard Features Include:

1. Two cars towing type: The rollback tow truck vehicle is capable of towing two cars simultaneously.
2. Haizhanli oil cylinder: The Haizhanli oil cylinder is a hydraulic component used to generate linear force and motion.
3. Hefei Wany hydraulic pump: The Hefei Wany hydraulic pump is used to transfer fluid from the reservoir to the hydraulic system to produce the necessary power to operate the vehicle.
4. Italy/Turkey Hyde hydraulic valve: The Italy/Turkey Hyde hydraulic valve is used to control the flow of fluid through the hydraulic system.
5. Suizhou power take-off: The Suizhou power take-off is used to transfer power from the engine to the transmission and then to the wheels.



Optional Features Include:

1. Tread deck (5mm), counterweight: It provides additional traction and stability to the vehicle during towing operations.
2. Hard fifth wheel plate and hard drawbar: It provides a stronger and more durable connection between the towing vehicle and the trailer being towed.
3. Hebei Weiguo oil pump: It can replace the standard Hefei Wany hydraulic pump.
4. Worm gear winch: The worm gear winch is used to pull heavy loads onto the towing vehicle.
5. Turkey Heller imported valve: The Turkey Heller imported valve can replace the standard Italy/Turkey Hyde hydraulic valve.
6. Zhejiang Jiashan power take-off: The Zhejiang Jiashan power take-off can replace the standard Suizhou power take-off.
7. A long row of engineering warning lights (strobe/normal): It provides additional warning and visibility during towing operations.
8. Manual or hydraulic rear flip board: It provides a mechanism to flip the rear board of the towing vehicle manually or using a hydraulic system.



SPECIFICATION



Model	FB05QL190L5
Chassis	ISUZU 700P 4X2Drive LHD; ISUZU 4HK1-TC51 diesel engine; ISUZU MLD-6Q manual transmission
Cabin	Day cab; 1695-2080mm in width; Rated nr. of passengers: 3
Overall Size	9610,9310mm×2400mm×2420mm (L×W×H)
Wheelbase	5200 mm
Front/Rear Wheel Tread	1685mm/1650mm
Gross Vehicle Weight	1055kg
Tare Weight	7100kg
Front/Rear Axle Rating	3500kg/7050kg
Engine	ISUZU/4HK1-TC51, diesel engine; 4 cylinders in-line, 5.193L; Tier level III emission
Engine Output Power/Speed	141kW(190hp)/2600rpm
Engine Output Torque/Speed	510N·m/1600rpm
Transmission	ISUZU MLD-6Q MT; Forward, 6 speed/Reverse, 1 speed
Tires	8.25R20; 6+1 spare tire
Truck Accessories	1nos of toolbox
Deck:
Deck Size (Inside)	7050*2320mm (Vary depending on the chassis) (L×W)
Max Load Rating	5000kg
Deck Construction	Sheet metal forming
Vehicle Towing	Two cars
Deck Work Distance (Working Motion)	3290mm
Deck Height Above Ground (Ground Clearance)	1350mm (Vary depending on the chassis)
Deck Min Tilt Angle	9°
Wheel Lift:
Rated Capacity Fully Retracted	4000kg
Rated Capacity Fully Extended	2500kg
Rear Towing Distance	2970mm
Effective Length of Arm	1800mm
Telescopic Distance	1600mm
Positive Tilt Angle	7°
Negative Tilt Angle	-9.5°
Winch:
Winch Qty	1pcs
Winch Type:	Planetary
Winch Power Mode	Hydraulic
Winch Rated Line Pull	40kN
Winch Diameter	φ110mm
Winch Cable Diameter	φ11mm
Winch Cable Length	2500mm
Cable Minimum Line Speed	5m/min
Hydraulic System	Haizhanli oil cylinder, Hefei Wany hydraulic pump, Italy/Turkey Hyde hydraulic valve; Suizhou power take-off
Towing Accessories:
Strap	4nos
Slide-In L-Arms	1set
Frame Forks	1set
Fork Receiver	1set
Chain Hook	1nos
Auxiliary Wheel	2nos
