Practicality and Versatility

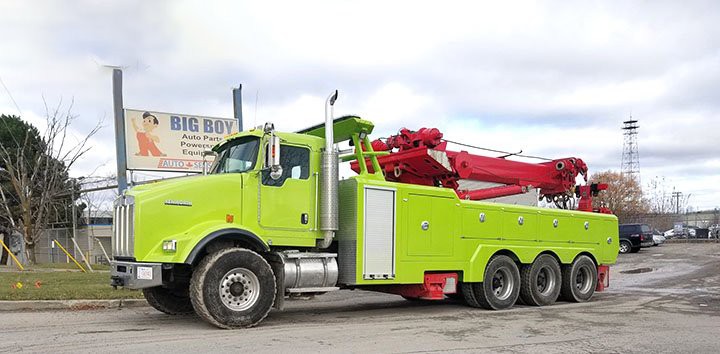

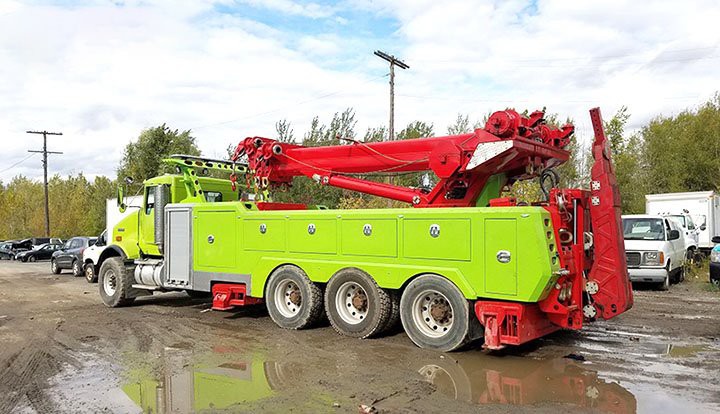

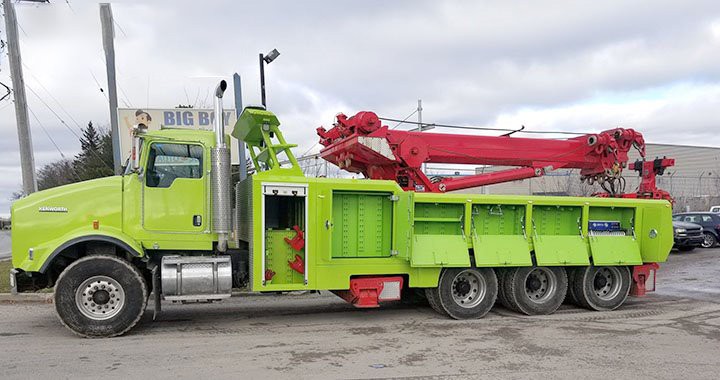

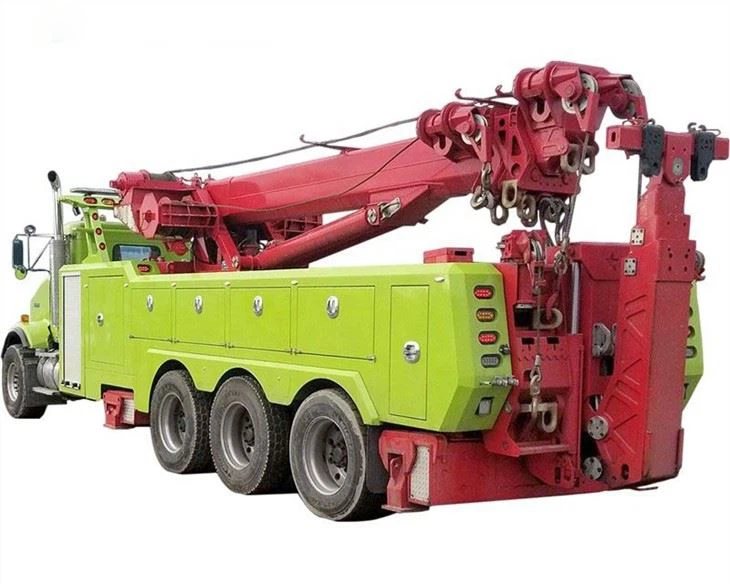

CSCTRUCK’s versatile 50 Ton rotator, designed for heavy duty, reaches the perfect balance between size and capacity. With the 360° continuous motion and the sliding , 4 winches option this unit can reach and lift in any situation you will encounter.

Unit weight without chassis:  20,700 kg (45,600 lbs)

Standard Features

5476 mm (216’’) Cab to centre of tandem standard steel body

2 x 25 ton (55,000 lbs) winches

1 set of frame fork holders and 4 sets of frame forks

Safety chains

Frame fork and chain racks

Chrome door handle

Air and 12V/24V outputs

Non slide configuration

Options

Complete wireless remote control

Proportional remote control

Slide configuration

2 additional 20 ton (44,000 lbs) winches

609 mm (24"), 762 mm (30"), 914 mm (36"), 1219 mm (48"), 1828 mm (72") tunnel box

Tailboard controls

Extra frame forks

Wheel lift receivers for single / double tires

Full recovery tool package

Custom storage system

Aluminum / Composite body

European body style

Gravel guard undercoating finish

Front push bumper

Front winch and Drag winch

XP, X-shape side puller

A-arm style side winches

Steel core rope

Chrome hand rails

In cab controls

Full size LED light bar

LED - working lights, strobe lights, lights inside toolbox

Custom painting

Installation services and extended warranty

Tow operators education & training

Specifications

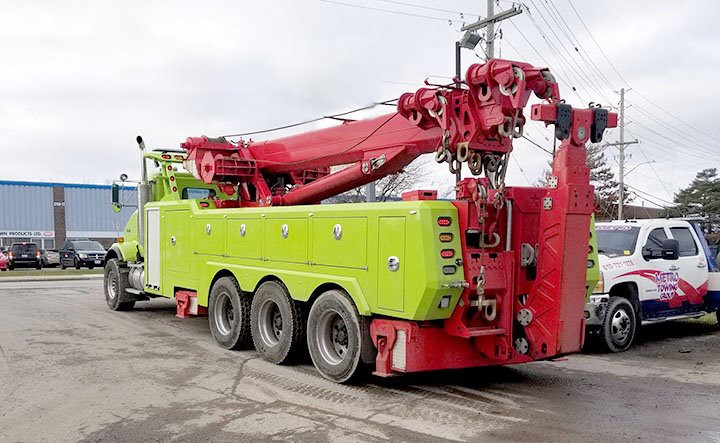

Underlift Specifications

Retracted capacity on forks  22.5 ton (50,000 lbs)

Retracted distance to the forks  1844 mm (73″)

Extended capacity on forks  5.6 ton (12,300 lbs)

Extended distance to the forks 3700 mm (146″)

Negative tilt angle  -8°

Tow Rating  36 ton (80,000 lbs)

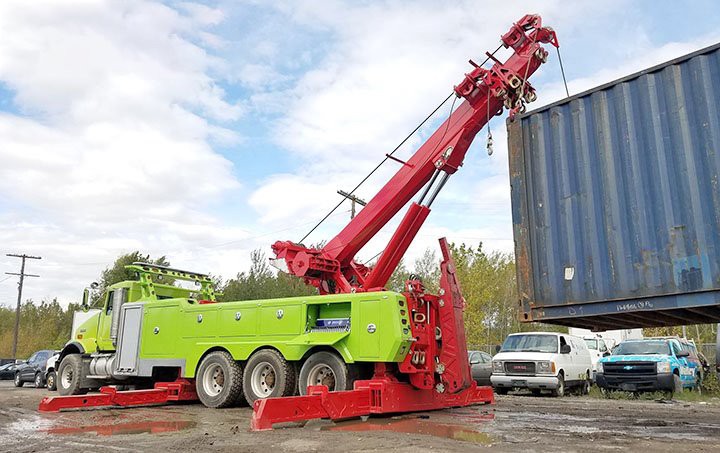

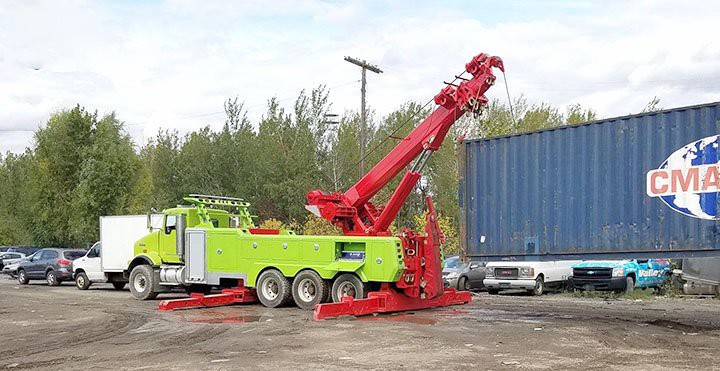

Boom Specifications

Retracted capacity (at 70°) 50 ton (110,200 lbs)

Extended capacity (at 70°)  12.5 ton (27,550 lbs)

Maximum Lift angle  70°

Maximum Hook Height  13077 mm (515″)

Reach Past Tailboard  6947 mm (273″) Slider Option

Vehicle Recommendations

Front axle(s) weight (min)  9 ton (20,000 lbs)

Rear axle(s) weight (min)  9 ton (20,000 lbs)

+ 2 x 10.4 ton (23,000 lbs)

Reccomended Tire size  R24,5

Clear CA  5476 mm (216”)

Winch Specifications

Quantity  2 pcs

Pulling force (on 1st layer)  25 ton (55,000 lbs)

& optional 20 ton (44,000 lbs)

Winch type  Planetary

Cable length  22 mm x 60 m (7/8″ x 200′)

optional 19 mm x 60 m (3/4″ x 200′)
