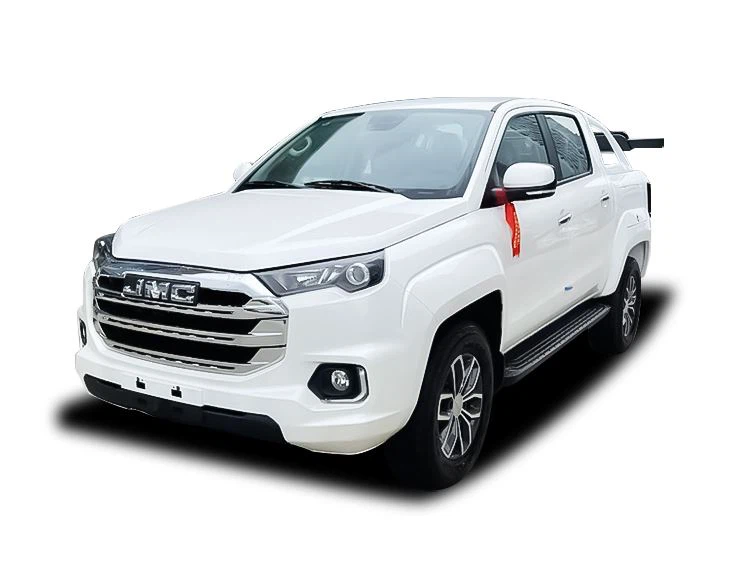

3 Ton Repo Tow Truck

3 Ton Repo Tow Truck

3-Ton Lifting Capacity Dual-cylinder Wheellift
Fully Automatic Tire Clamping Device
Wireless Remote Operation Mode
JMC Yuhu7 4WD Pickup Chassis
JMC 141hp Diesel Engine
6 Speed Manual Transmission

Description

BRIEF



Introducing a new repo tow truck model designed specifically for small and lightweight recovery operations in limited spaces. This 3-ton white repo tow truck has been customized from a JMC four-wheel-drive pickup truck chassis and is ideal for repossessing vehicles in parking lots and narrow alleys, as well as for light-duty towing operations with a lift rating of 3000kg. The wrecker tow truck's short body and low-height design also make it a suitable option for vehicle rescue in underground garages, where other recovery trucks may be prevented from entering due to size constraints. This new repo tow truck provides a versatile solution for repossession and vehicle recovery operations in tight spaces, ensuring efficient and effective service delivery.



FEATURES



The standard features of a repo tow truck include:

  1. A wireless remote operation, a 3-ton electro-hydraulic unit, and imported oil seals and valves.
  2. The wrecker tow truck also comes with a fully automatic tire clamping device, a hydraulically lifting auxiliary wheel, and a dual-cylinder wheel lift at the end.
  3. The package includes a special hook wrench for rope tightening, an outer rope hook, and a front counterweight.
  4. Additionally, the cargo box is sprayed on the inside, while the original structure of the cargo box remains unchanged.
  5. The wrecker tow truck features reinforced 2 longitudinal beams with steel plates and a reinforced rear axle with 4 steel plates added or replaced.
  6. Finally, the wrecker tow truck has black fashionable L-shaped rear window protection guardrails.



SPECIFICATION



Model

RTT03JX141L6

Chassis

JMC Yuhu7 part-time 4WD LHD; JMC JX4D20A6L diesel engine; 6 speed manual transmission

Cabin

Crew cab; Rated nr. of passengers:2 front

Overall Size

5160,5100×1905×1910mm (L×W×H)

Cargo Box Size

1475x1475x500mm (L×W×H)

Wheelbase

3085mm

Front/Rear Wheel Tread

1570mm/1570mm

Front/Rear Overhang

1010/1065,1010/1005,923/1152,923/1092 mm

Gross Vehicle Weight

3395kg

Tare Weight

2265kg

Front/Rear Axle Rating

1340kg/2055kg

Approach/Departure Angle

28, 29°/22°

Tank Volume

67L

Max Speed

120km/h

Engine

JMC JX4D20A6L, diesel engine; 4 cylinders in-line, 1.998L; Tier level VI emission

Engine Output Power/Speed

104Kw(141hp)/3600rpm

Engine Output Torque/Speed

310N·m/1600~2400rpm

Transmission

MT; Forward, 6 speed/Reverse, 1 speed

Tires

265/70R16,245/70R17,265/65R17; 4+1 spare tire

Pickup Truck Standards

Keyless entry, one-button start, leather seats, multi-function steering wheel, reversing image, reversing radar, thick off-road tubeless tires, four-wheel disc brakes, aluminum alloy rims, electric reversing mirror, auto-sensing lens halogen headlights, LED daytime running lights, front fog lights, LED high mounted brake lights, auto-sensing wipers, ABS, electric glass central locking, air conditioner and rear AC outlet, front, and rear bumper, MAXUS grille

Wheel Lift:



Rated Capacity

Fully Retracted

3000kg

Section

3

Lifting Cylinder

Dual

Towing Accessories:



Auxiliary Wheels

2nos

Strap

4nos

Toolbox

1nos
