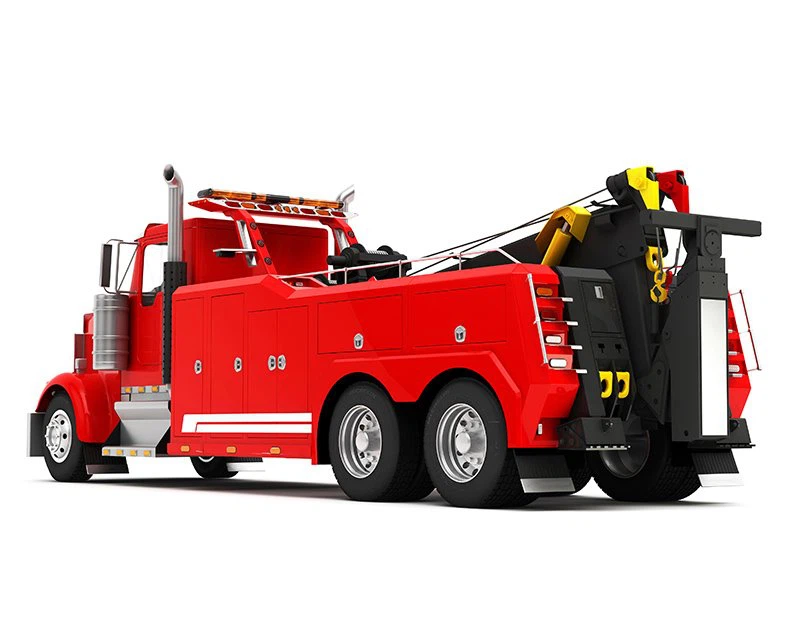

35 Ton Wrecker Recovery Unit

Technical Specification

BREIF

35 Ton Wrecker Recovery Unit (not including truck chassis) Equipment including as following:

-Two (2) Nos. of 20-ton (44,000 lbs) Boom Winch

-One (1) Nos. Section Telescopic Boom,

-One (1) Full set of Integrated Underlift System

-Dual Side Manual Controls

-16-inch Carbon Steel Thickness 3 mm Tool Box

-Full Sets of Chrome door handle

-Wireless Remote-Control System

-Full Size LED Light Bar

-Five (5) sets of Frame Forks,

-One (1) set of Fork Adaptor

-Complete Unit Electrophoretic prime painting

STANDARD FEATURES

-4114 mm (162'') Cab to centre of tandem steel bodyTwo 10 ton (22,000 lbs) winch

-Frame fork holders

-Frame fork racks

-Chain racks

-4 sets of frame forks

-Chrome door handle

-Safety chains

-Wireless Remote Control

-Full size LED light bar

-LED - working lights, strobe lights, lights inside toolbox

-Retracted capacity on forks  15.8 ton (35,000 lbs) / * 14 ton (31,000 lbs)

-Retracted distance to the forks  1514 mm (60”) / * 1701 mm (67”)

-Extended capacity on forks  7.2 ton (16,000 lbs) / * 5.4 ton (12,000 lbs)

-Extended distance to the forks  2936 mm (116”) / * 3657 mm (144”)

-Negative tilt angle  -6°

-Tow Rating  36.2 ton (80,000 lbs)

Boom

-Retracted capacity (at 32°)  35 ton (77,100 lbs)

-Extended capacity (at 32°)  17,5 ton (38,500 lbs)

-Maximum Lift angle  32°

-Maximum Hook Height  5913 mm (233”)

-Reach Past Tailboard  3373 mm (133”)

Winch

-Quantity  2 pcs

-Pulling force (on 1st layer)  20 ton (44,000 lbs)

-Winch type  Planetary

-Cable length  19 mm x 60 m (3/4″ x 200′)

Vehicle Recommendations

-Front axle(s) weight (min)  6 ton (13,200 lbs)

-Rear axle(s) weight (min)  2 x 9 ton (20,000 lbs)

-Reccomended GVW  24 ton (53,200 lbs)

-Reccomended Tire size  R22,5

-Clear CA  4114 mm (162”)

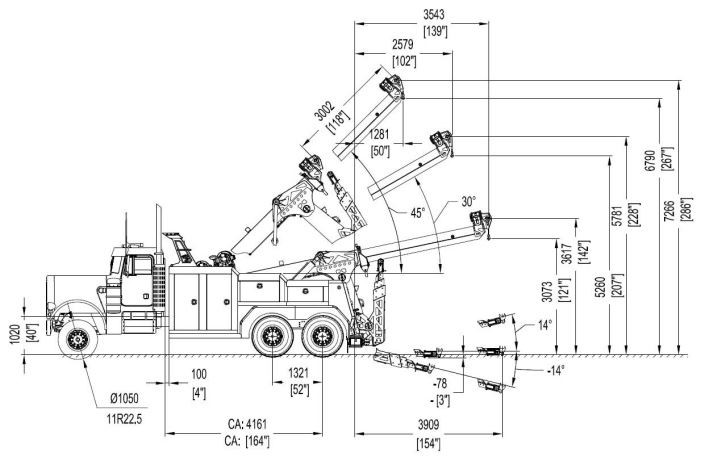

INT30 Line Drawing( chassis truck only for reference)
