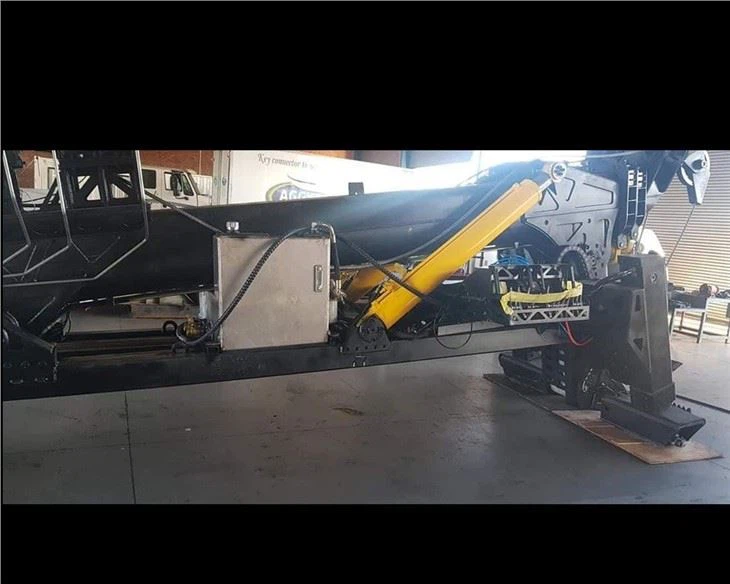

INT35 Integrated Wrecker Unit 35 Ton

INT-35 NEW -2020 Integrated Wrecker Unit

Equipments including as following:

1.        Body Assembly

2.       Subframe Assembly

3.       Recovery Boom Assemly

4.       Underlift and Tower Assembly

5.       Winch Assembly

6.      Hydraulics

7.       Controls

8.      Hydraulic Cylinders

9.      Lights Kit

10.   Recovery Accessories

Note:

1)         Exterior Black,inner boom, the second and third underlift boom, outrigger spade color as customer’s color code.

2)        Tool compartment size 24 inch, door open size 23.6inch.

Parts Description

1, Body Assembly:

l  Light Bar

-        Constructed from carbon steel Q235, thick in 3 mm;

-        Light bar weldment including : Left and right hand side light bar support in vertical; Top channel; Light rack support

-        Mounting Bracket welded in left and right tool compartment

-        Electrophoretic prime painting

l  Tool Compartment

-        24inch Tool compartments including front 1 pcs of 1/2 tunnel box ( if drag winch insall space enough), left and right hand dual side tool boxes;

-        Constructed from carbon steel Q235, thick in 3 mm, top plate thick in 4mm;

-        Door weldment thick in 3mm, 23.6inch 4 pcs of stainless steel handle;

-        Tool comparments will not drill holes, customer will drill the hole by himself.

-        Electrophoretic prime painting

2, Subframe Assembly:

-        Subframe Weldment, Outter width 860mm

-        Braket, Boom Pivot

-        Spade blade, left and right

-        Inner Spade Weldment, left and right

-        Lift Cylinders 2 pcs,

-        Spade Cylinders, 2 pcs

-        Front Body Mounting Tube

-        Chassis frame mounting plate total 8 pcs, each size with 1000mm, steel plate, customer will cutting drilling and welding onto subframe, bolting onto the truck chassis

3, Recovery Boom Assemly

-        Outter Boom Weldment (fixed boom), Constructed from high strength steel T700

-        Second stage Boom Weldment ( telescopic boom), Constructed from high strength steel T700

-        Third stage Boom Weldment ( telescopic boom), Constructed from high strength steel T700

-        2 Nos. of Extend Cylinder

-        Cable Guide (2 pcs) and Swivel Weldment (2 pcs)

-        Plate, Winch cable support

-        Electrophoretic prime painting

4, Underlift and Tower Assembly

-        Tower Weldment, Constructed from high strength steel T700

-        Tilt Cylinders 2 pcs, Fold Cylinder 1pcs

-        Outter Boom Weldment, Constructed from high strength steel T700

-        2nd Stage Boom Weldment, Constructed from high strength steel T700

-        3rd Stage Boom Weldment, Constructed from high strength steel T700

-        Extend Cylinders 2 pcs

-        Crossbar weldment

-        Electrophoretic prime painting

5, Winch Assembly

l  Boom Winch

-        2 pcs hydraulic winch

-        Each winch with 17.5 Ton pulling capacity.

-        With 50 meter length steel rope

-        With hook

-        With rope guide

l  Drag Winch

-        1 pcs of drag winch

-        Mounted behind the cab inclined left or right position,

-        Pulling capacity 20 Ton ,

-        With 60 meters length steel rope

-        With hook

-        With rope guide

6, Hydraulics

Manufacturer standard Hydraulic Pump, Reservoir Weldment, Filter, 9 section Monoblocke Valve

l  Underlift Hydraulics

-        3 Section of Control Valve, Italy HydroControl brand

-        Holding Valve, Italy brand

-        1 pcs of Tilt Cylinders,China famous brand

-        1 pcs of Fold Cylinder, China famous brand

-        1 pcs of Dual Extend Cylinder, China famousn brand

-        Tube Assembly , Clamping Unit, Hose Assembly, Hose Clamp, Connector, Elbow, Branch Tee

l  Recovery Boom Hydraulics

-        3 Section of Control Valve, Italy HydroControl brand

-        Holding Valve, Italy Brand

-        2 pcs of Boom Lift Cylinders, China famous brand

-        1 pcs of Inner Boom Extend Cylinder, China famous brand

-        Tube Assembly , Clamping Unit, Hose Assembly, Hose Clamp, Connector, Elbow, Branch Tee,

l  Boom Winch & Drag Winch Hydraulics

-        2 Sections of Control valve, Italy HydroControl brand

-        3 pcs of Solenoid Valve,

-        Tube Assembly , Clamping Unit, Hose Assembly, Hose Clamp, Connector, Elbow, Branch Tee,

-        Winch , rear, left and right

l  Rear Spade Hydraulics

-        1 Section of Control Valves, Italy HydroControl brand

-        2 nos of lifting Hydraulic Cylinders, China famous brand

-        Hose assembly , Connectors, Hose clamp fittings

7, Controls

l  Left and right Control Assembly

-        Control Knob

-        Control Cable

-        Control Handle Weldment

-        Control Frame Weldment

l  Remote Control Assembly

-        Wire connector

-        Air Hose

-        Electric Calbe

-        Breather Vent

-        Air Solenoid Valve

-        Air Cylinders

-        Air Filter/regulator/lubricator, gause

-        Mounting Bracket

8, Hydraulic Cylinders

-        2 Nos of Boom Lift Cylinder (complete) seal kit

-        1 Nos of Boom Extend Cylinder( complete) seal kit

-        1 Nos of Underlift Tilt Cylinder (complete) seal kit

-        1 Nos of Underlift Dual Extend Cylinder( complete) seal kit

-        2 Nos of Rear Spade Cylinder (complete) seal kit

9, Lights Kit

As manufacuter’s standard as following,

-        3 pcs in Light Dome in Light bar LED lights (complete)

-        6 pcs of Light Turn in Light Bar LED (complete)

-        20 pcs of Light Dome in Marker Light , LED, installed in the Body Assembly

-        The above all lights kit could optioanl for different style flashing, wireless etc.

10, Recovery Accessories

-        2 pcs of Fork, Short

-        2 pcs of Fork, Medium

-        2 pcs of Fork, Medium

-        2 pcs of Fork, Long

-        2 pcs of Fork, Offset Rear Axle

-        2 pcs of Fork Adaptors

Specification

l  Underlift

-        Retracted capacity on forks  14 ton (31,000 lbs)

-        Extended capacity on forks  5.4 ton (12,000 lbs)

-        Negative tilt angle  -6°

-        Tow Rating 36.2 ton (80,000 lbs)

-        Retracted distance to the fork 74”(1701mm) approxmately

-        Extended distance to the fork 144” (3657mm) approxmately

-        Towing rate 36.2 ton (80000lbs)

l  Boom

-        Retracted capacity (at 32°)  35 ton (77,100 lbs)

-        Extended capacity (at 32°)  7.5 ton (16,500 lbs)

-        Maximum Lift angle  45°

-        Max hook height 307”(7.79m) approxmately

-        Boom reach 325” (8.26m) approxmately

l  Vehicle Recommendations

-        Front axle(s) weight (min)  6 ton (13,200 lbs)

-        Rear axle(s) weight (min)  2 x 9 ton (20,000 lbs)

-        Reccomended GVW 24 ton (53,200 lbs)

-        Reccomended Tire size R 22,5

Clear CA 5380 mm (212”)
