● Towing trailer for factory, logistics, port transport.
● Load capacity, overall customized according to customer needs.
● Tow bar reduces the impact when the vehicle running and parking.
● Front suspension turn, rear suspension orientation.
FEATURES
● Towing trailer for factory, logistics, port transport.
● Load capacity, overall customized according to customer needs.
● Tow bar reduces the impact when the vehicle running and parking.
● Front suspension turn, rear suspension orientation.
● High-strength buffer ride spring.
● Uneven road still be running smoothly. Large loading capacity
● Simple structure, multi- application, convenient maintenance, long service life.
● Widely used in machinery, metallurgy, warehousing and transportation and other industries
● Flat-bed trailer special tires (Iron core rubber solid tires).
● A frame Drawbar Trailer.
● Surface treatment: rust removal, de-oxidation skin, anti-rust paint, surface paint treatment.
OEM processing, non-standard customization available.
SPECIFICATIONS

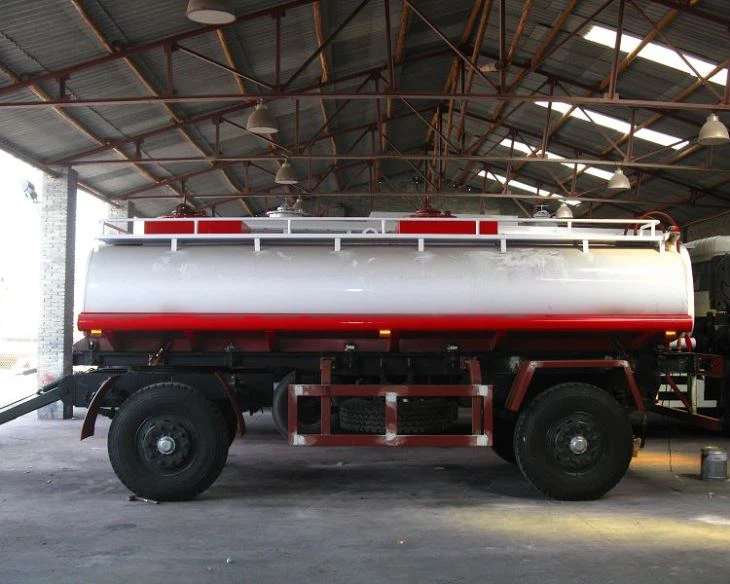

General Information | Product Model | CSC9200GSS3 |
Overall Size | 8200×2320×3100 mm | |
Tank Capacity | 12 m3 | |
Product Service | Diesel, Heating Oil, Gasoline, Bulk Water | |
Max Load | 20000 kg | |
Tare Weigh | 7490 kg | |
Tank | Shape | Elliptical Straight profile |
Material | High tensile steel Q235B, 5mm in thick, Stainless Steel | |
Spill Box | Optional | |
Discharging | Aluminum ball valve with quick coupling in 4 in | |
Baffle | 3 Nos | |
Manhole | 1 Nos DN500 Aluminum | |
Front Manifold | 2 Nos 3.4" Faucets Each Side. | |
Rear | Bronze Valve with Locking Provisions | |
Cleanout | Located at side of Tank | |
Insulation | As request for Stainless Steel Jacket | |
Pump | Optional for portable pump | |
Chassis | Main Beam | 400mm steel in deep |
Trailer | Single driving axle with tubular | |
Suspension | Spring-ride | |
Front Axle | 1 Nos Chinese L1 12Ton axle, for Steering | |
Rear Axle | 1 Nos Chinese L1 12Ton axle, for driving | |
Wheels | Steel or aluminum 8.25×22.5 | |
Tires | 11R22.5 Triangle on road tread | |
Brakes | Air Brake System | |
Hitch | Lunette eye hitch with adjustable heights | |
Drawbar Jack | Manual Crank Style Jack | |
Spare Tire Carrier | Standard w/o tire | |
Tire Mount | Under tank trailer | |
Tie Down Points | 4 Tie Down Eyes, (2) Front (2) Rear | |
Light | 24-Volt Blackout LED Lighting | |
Rust Proofing | Sand or steel blasting | |
Paint | One Color |
