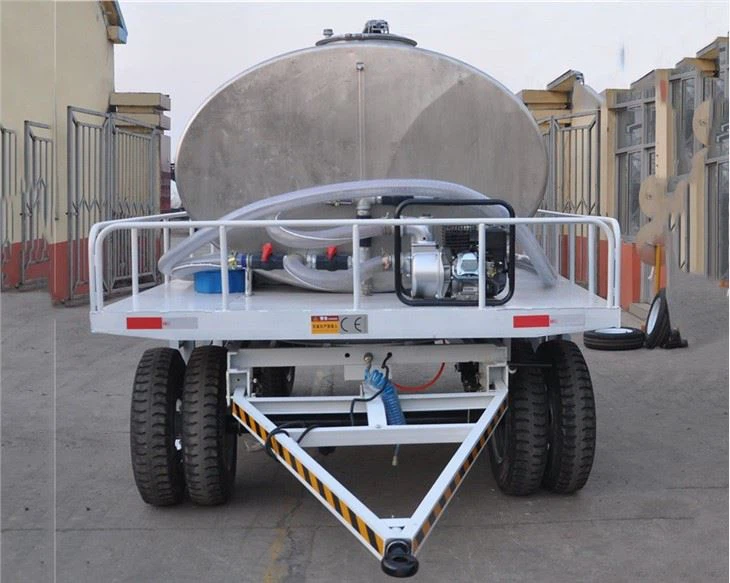

Stainless Steel Tank Trailer 5000L Double Axle

Stainless Steel Tank Trailer 5000L Double Axle

CHARACTERISTICS

•Number of axles: 2-axle

•Tire: front & rear dual tire

•Vehicle trailed

•Pump: Portable Gasoline Pump

•Capacity: Max.: 5000L

•Total Weight: 6680kgs

•Size: 2950*1800*1203mm

Tank Trailer 5000l Single or Double Axle

Tank Bolted on the Flatbed

Forged Hitch- More Resistance

Top 500mm Inspection Door(manhole)

Rubber Gasket

Outlet Valve

Equipped With Double Segmental Baffles

Technical Specifications

Load Capacity 5000l

Tank Dimensions 2.90 x 1.80 X 1.02m

Total Length 4.30m

External Gauge Length 1.80m

Number Of Axles 2

Weight 6680 Kg

Wheel 6f 5.5f x 16"

Tires (4) 7.50/7,00 x 16"

Pump Rotation 3500 Rpm

Maximum Pump Flow Rate 30m³/H

Maximum Pump Pressure 50m.C.A

Tank Material:SUS304 thick 4mm, baffle inner thick in 3mm
