Single cable telescopic cylinder technology. Efficiently.
Advanced development, ensure the reliable designing.
Compact hinge point design less the space.
Pulleying alarm device ensure the safety in working.
Self developed rotation sys. Strong drive meet different request
CSCTRUCK
MANUFACTURE SPECIFICATION(Ref.No.: INV180919BM)

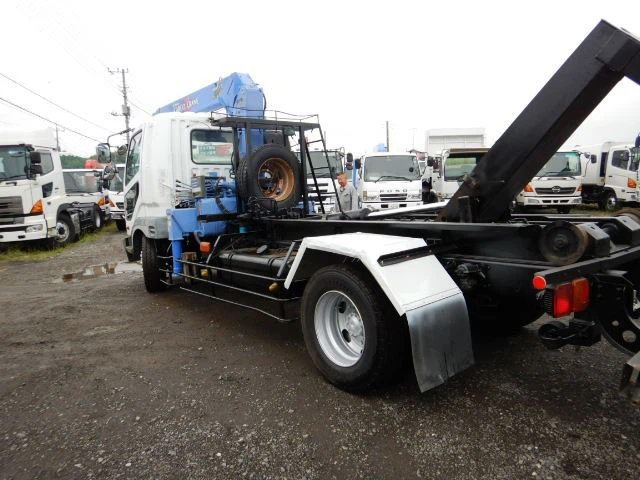

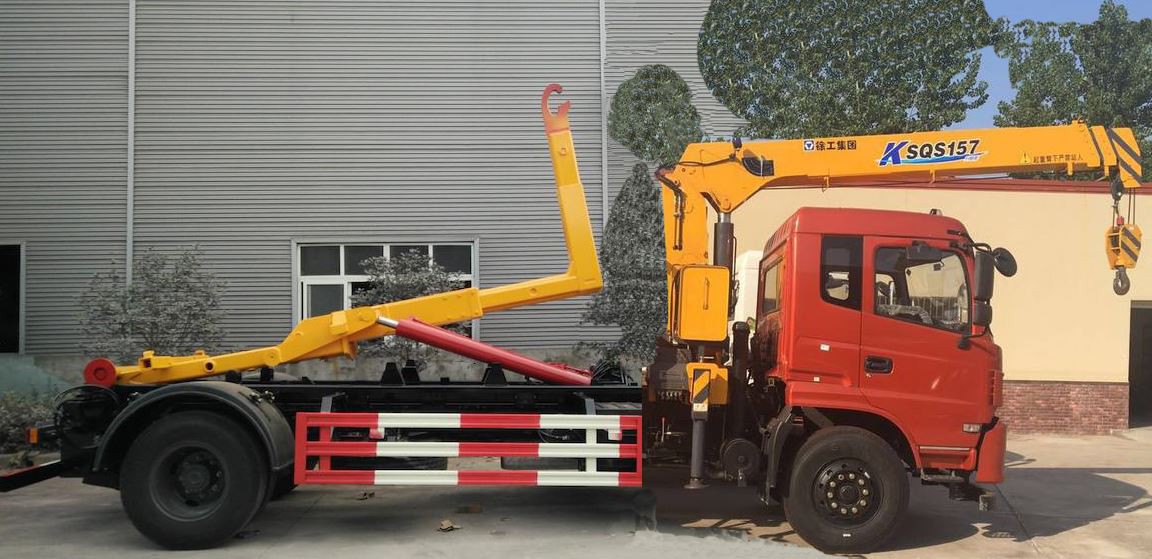

5TON CRANE MOUNTED TRUCK /with pull up hook

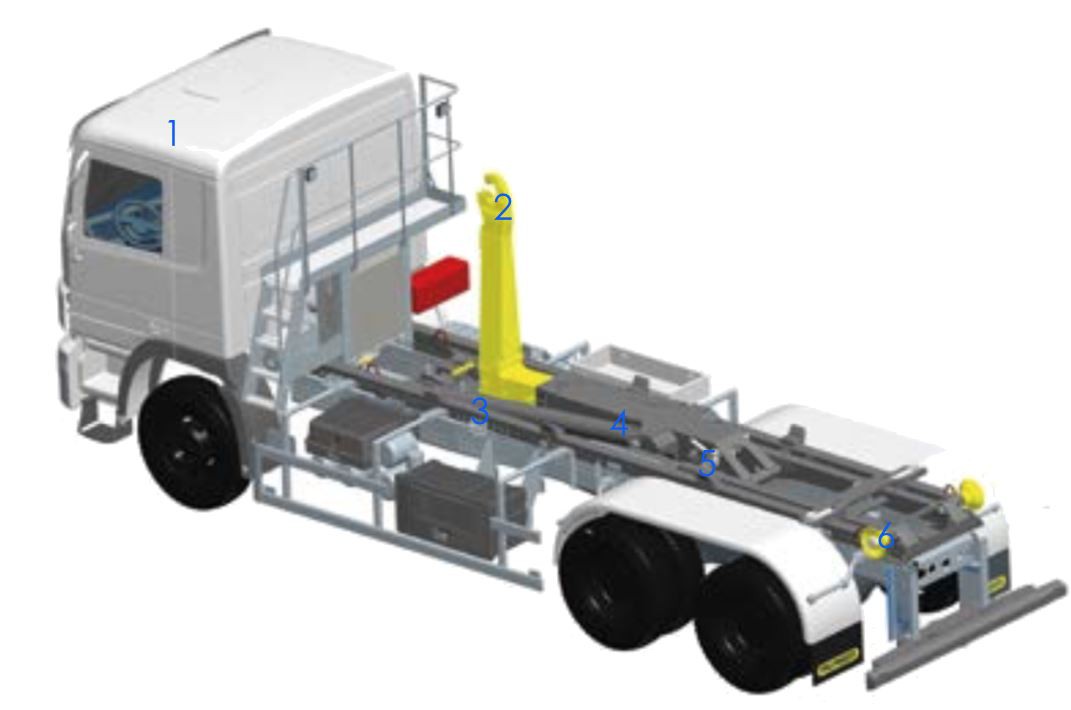

HOOK LOADER TRUCK STRUCTURE
 | 1. Truck Chassis |
| 2. Hooker | |
| 3. Sub-frame | |
| 4. Hydraulic Cylinder | |
| 5. Container Support | |
| 6. Pulley |
CRITICAL PARTS

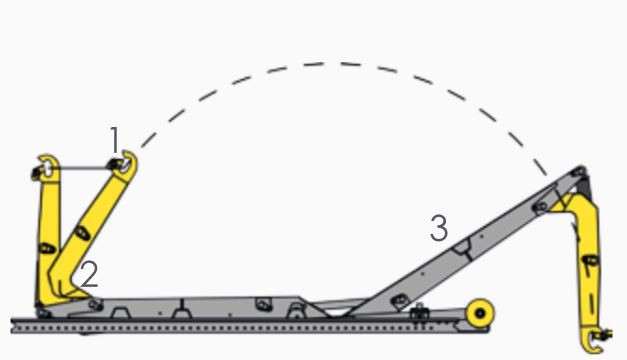

☆ Hook System: Consist with Hooker, L-typed beam and telescopic boom. Hooker forged from 20Mn alloy steel L-typed beam and telescopic boom, which are welded from 16Mn alloy steel, connect with sub frame by hinge, under action of hydraulic and electric, through cylinders’ movement could extend and extract.

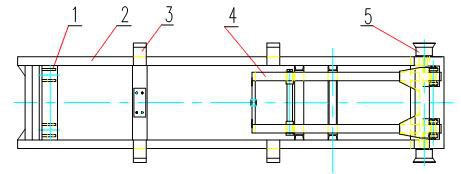

 | 1. Hooker | |
| 2. L-Typed Beam | ||
| 3. Telescopic Boom | ||

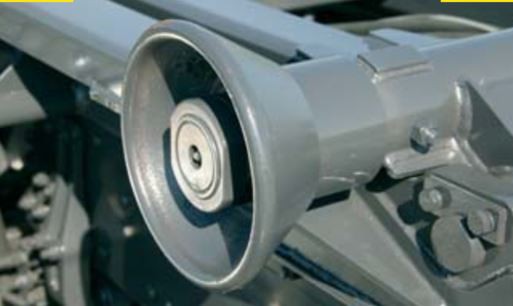

☆ Sub frame: is hook loader’s main loading framework, consist with cylinder brace, longitudinal beam, cross member, hook system brace and rear pulley. In the lift and drop processing, the roller could support the container and slide orientation.
 |  | |
| 1. Cylinder Brace | 2. Longitudinal Beam | 3. Cross Member |
| 4. Hook System Brace | 5. Rear Pulley | |

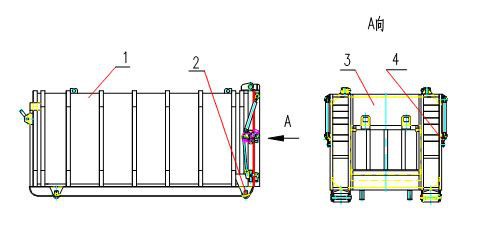

☆ Container: The container is consisting with box body, roller, rear door and locking mechanism it is the main body for loading cargo and goods. The box material with 16Mn alloy steel, inside structure as a trumpet – shaped. The roller installed under the container box, support the box sliding on the ground, the box is fully closed structure, rear door frame imbedding with gasket and after water test avoid water leakage. The rear lockable door would choose optional hydraulic control which could operated in the cabin.
 | 1.Box 2.Roller 3.Rear door 4.Rear door locks Size: 3100*2300*1200 | |
☆ Supporting Equipment: consist with container support, hydraulic cylinder and roller. When hook system lift and discharge the container, the system will automatically drop the rollers. The system could also keep the balance when the vehicle operated in the soft ground.
 |  | |

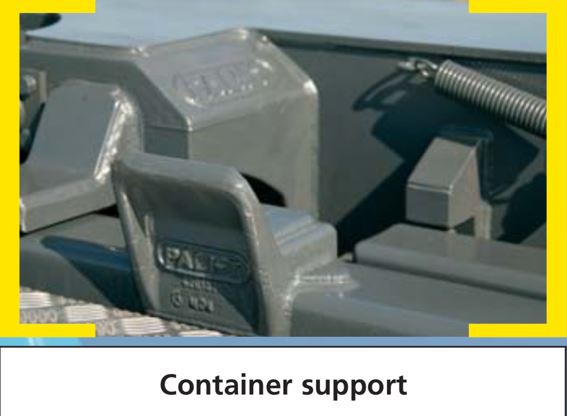

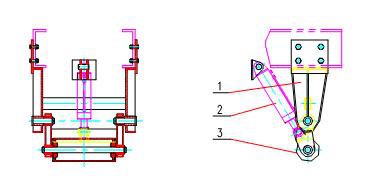

| 1. Container Support | 2. Cylinders | 3. Supporting Roller |
☆ Hydraulic System: including the filters, oil pump, solenoid directional control valve, interlocks, cylinders, Balance valves, return filters and oil tank. The oil pump drive through shaft by PTO from gearbox, power the hydraulic oil controlled by solenoid directional control valves into cylinders. The oil pump and hydraulic valves are qualitied import parts. There is a rotary type control switch in the cabin for control the hydraulic vales.

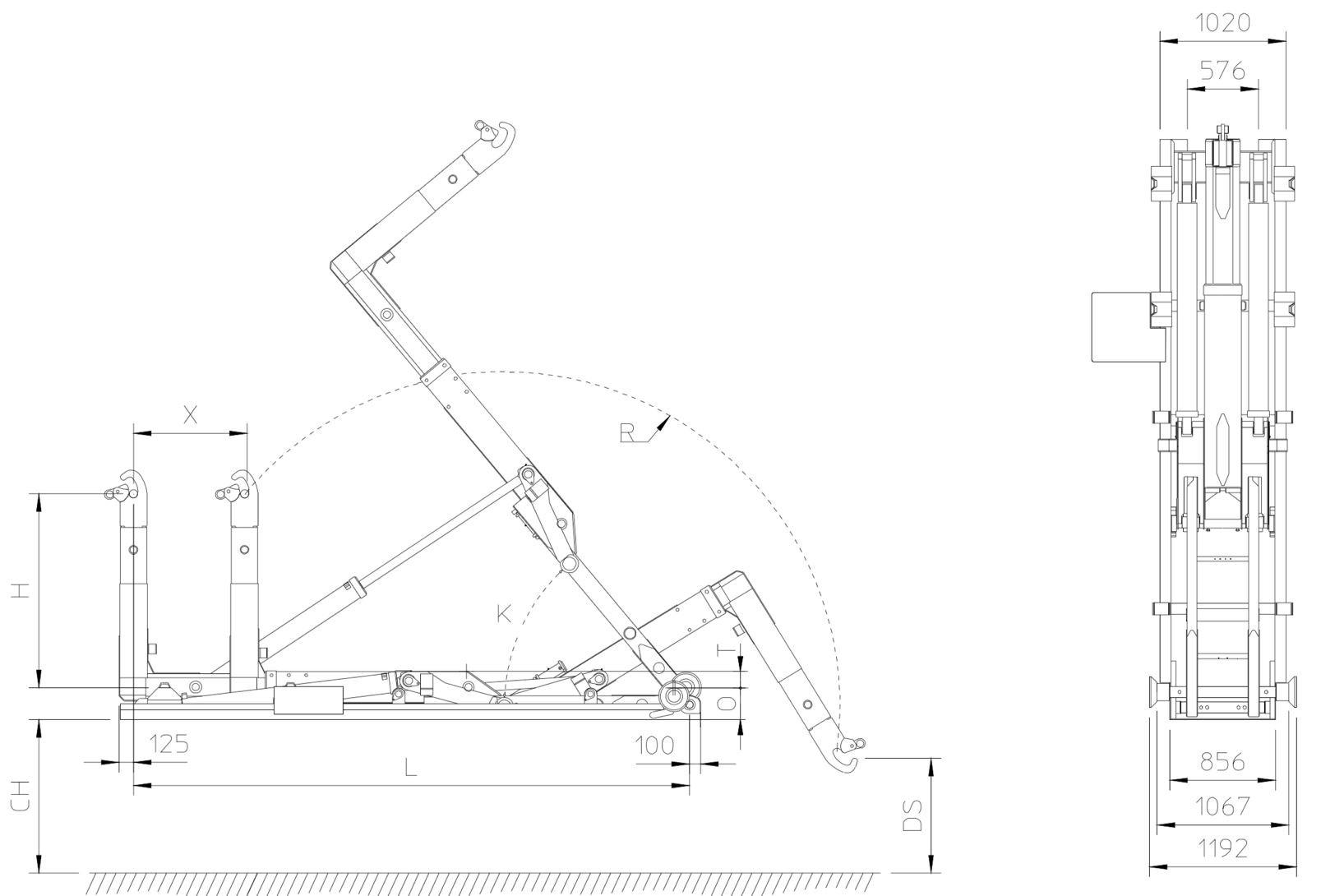

☆ HOOK LOADER MECHANISM
DS(mm) | 951 | L(mm) | 3110 | K(O) | 50 |
R(mm) | 2725 | O(mm) | 280 | H(mm) | 920 |
X(mm) | 900 | T(mm) | 130 |

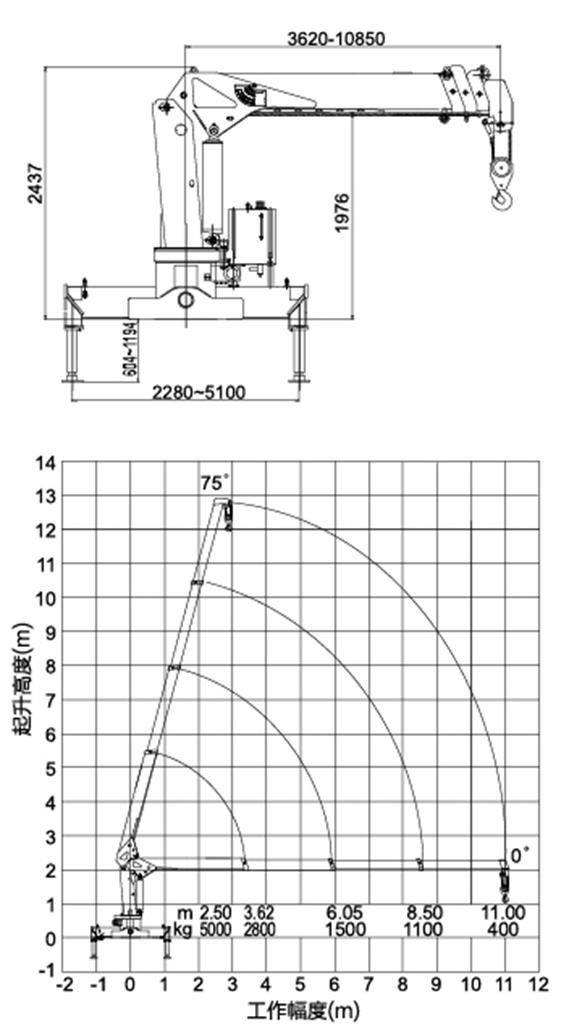

CRANE MECHANISM

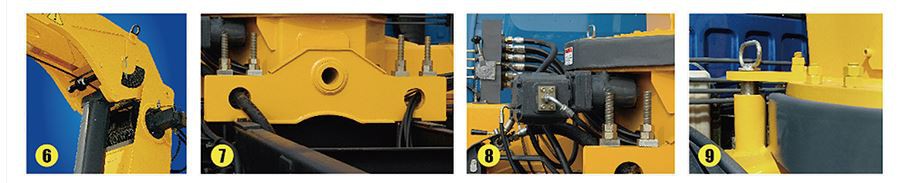

NO. | FEATURES & Advantageous |

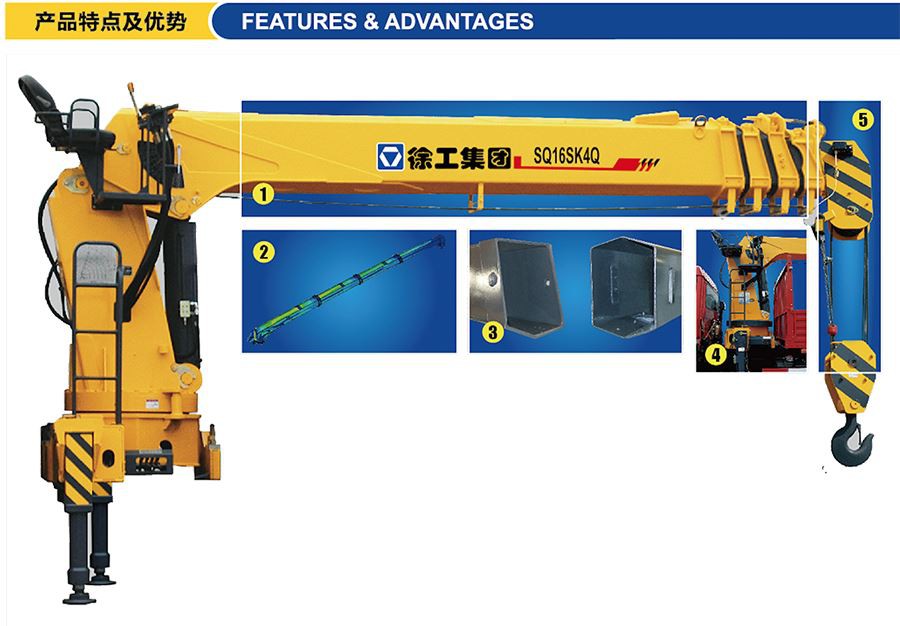

1. | Single cable telescopic cylinder technology. Efficiently. |
2. | Advanced development, ensure the reliable designing. |
3. | Pentagon & Hexagon boom assured perfect centering, much more good performance in bending resistance. |
4. | Compact hinge point design less the space. |
5. | Pulleying alarm device ensure the safety in working. |
6. | Integral hoisting winch mechanism, improved working efficiency, increase the hydraulic service life. |
7. | Unique floating triple bridges design less the extra stress bear by the truck chassis frame in the drive situation. |
8. | Self developed rotation sys. Strong drive meet different request |
9. | Anti-rotation device protect the vehicle in safety driving. |
PARAMETERS
ITEM | UNIT | SPECIFICATIONS |
Garbage Container Size | mm | 3100*2300*1200 |
Hook Height(H) | mm | 920 |
Chassis Height(CH) | mm | 1010 |
Vehicle Full Loaded Weight | kg | 14000 |
Vehicle Unload Weight | kg | 7815 |
Pay Loading Weight | kg | 6035 |

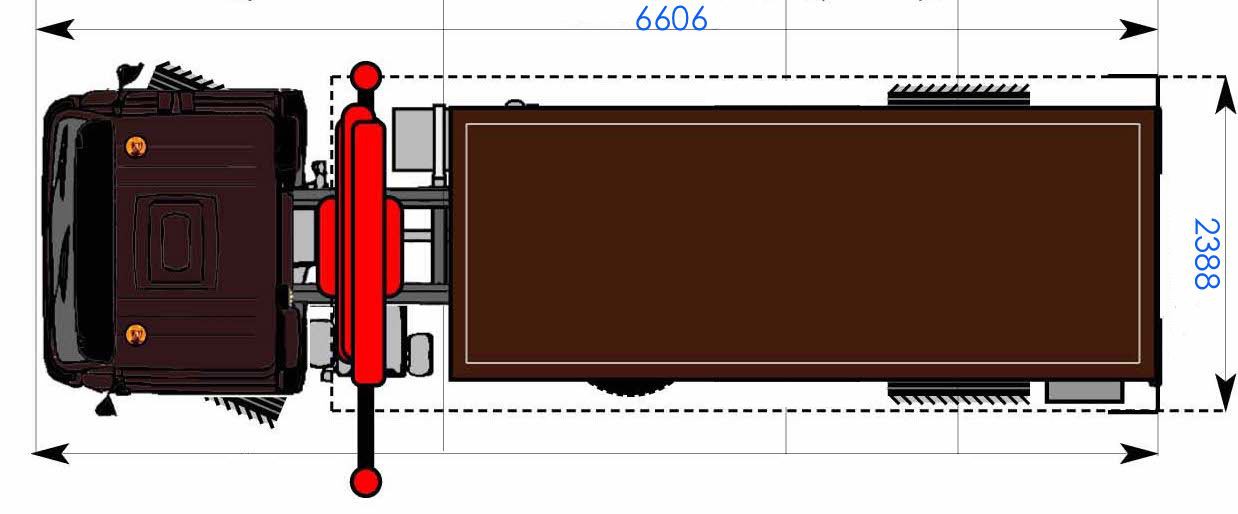

Overall Size | mm | 6606*2388*3400 |
CHSSIS TRUCK | HOWO | |
Model | ZZ1107G4515C1R | |
Steering | Right Hand Drive | |
Suspension | Leaf spring with shackle link | |
Axles | 2 pcs Die-casting | |
Tires | 8.25R20 7pcs | |
Brakes | Air brake with dual circuit | |
Cabin | Sleeper/bunk tiltable | |
Clutch | Single Dry diagram | |
Battery | V | 12 |
Approaching Angle | o | 20 |
Departure Angle | o | 17 |
Max. Turning Radius | m | ≤17 |
Min. Ground Clearance | mm | 176 |
Max. Climbing | % | 30 |
Max. Speed | Km/hr | 95 |
Oil Consumption | L/100km | 25 |
Chassis Weight | kg | 4265 |
ENGINE | DONGFENG | |
Model | YC4E140-42 | |
Type | Diesel | Turbocharged inter cooler |
Cylinder Numbers | 4 | |
Max Output Power | kw | 103 |
Flywheel Speed | rpm | 2600 |
Horse Power | hp | 140 |
Max Torque | N.m | 430 |
Max Torque Speed | rpm | 1300-1600 |
Weight | kg | 420 |
Bore*Stroke | mm | 110*112 |
TRANSMISSION MODEL | SINOTRUK | |
Model | DC6J65TC | |
Type | Manual | |
Forward Speed | 6 | |
Backward Speed | 1 | |
Synchronizer | Yes | |
Output Torque | N.m | 520 |
HOOK LOADER | XR 5S-3650 | |
Hook Type | L typed | |
Loading Cycle | Sec. | ≤34 |
Unload Cycle | Sec. | ≤42 |
Hoist Cycle | Sec. | ≤37 |
Rapid Discharge Time | ≤17 | |
Tilt Angle | o | 48 |
Hook Capacity | kg | 5500 |
Hook Weight | kg | 750 |
Container Size | M3 | 8.5 |
Hydraulic Pressure | Mpa | 16 |
Oil Pump | l/min | 80 |
PTO Ratio | I=1.0 | |
CRANE | SQ5SK3Q | |
Crane Type | Telescopic | |
Max Lifting Capacity | kg | 5000 |
Max Lifting Moment | T.M | 12.5 |
Power | kw | 18 |
Hydraulic Oil Flow | l/min | 32 |
Hydraulic Oil Pressure | Mpa | 20 |
Oil Tank Capacity | L | 90 |
Crane Weight | kg | 2260 |
Install Space | mm | 900 |
Rotation Angle | o | 360 all rotation |
