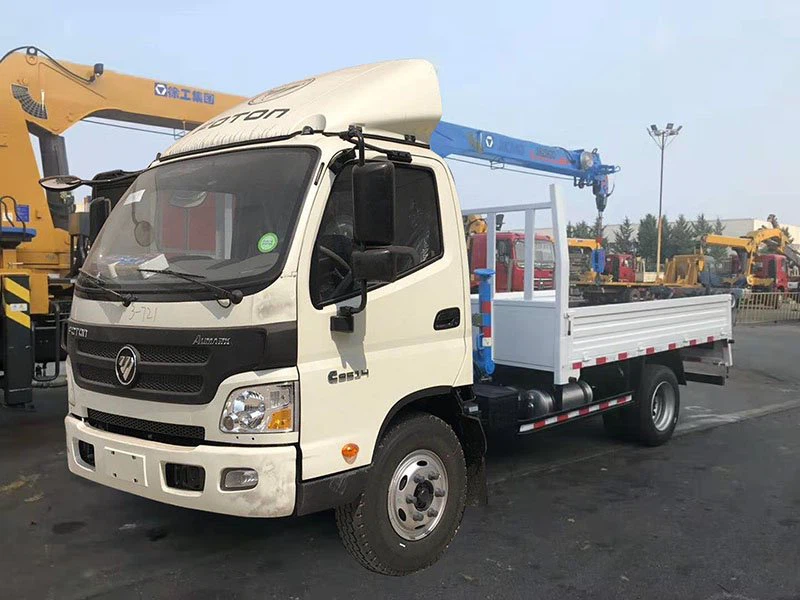

FOTON Truck Mounted Telescopic Crane

BRIEF
Model AUMARK-C33
6.3Ton Telescopic Crane
Cummins 141hp Engine, EURO III
Truck Size 5875×2030×2230mm
Wheelbase 3360 mm

Send Inquiry

FOTON Truck Mounted Telescopic Crane

BRIEF

Model AUMARK-C33

6.3Ton Telescopic Crane

Cummins 141hp Engine, EURO III

Truck Size 5875×2030×2230mm

Wheelbase 3360 mm

Box Size 4170*2100*400 mm

Vehicle model		AUMARK-C33
Cabin		Single row/W1995/right rudder
Whole vehicle main dimensions	Overall dimensions (LxWxH)mm	5875×2030×2230
Whole vehicle main dimensions	Wheel base(mm)	3360
Weight data	Curb weight(kg)	2600
	Gross vehicle weight（kg）	6495
	Persons in cab	3
Whole vehicle main performance	Max. speed（km/h）	95
ENGINE	Model	F3.8s3141
	Emissions standards	EuroⅢ
	Displacement（L）	3.76
	Rated Power（kw/rpm）	105
	Max torque （N.m/rpm）	450
Gearbox	Model	6TS55
Front axle	Type/Mainreducetion ratio	2.2T
Rear axle	Type/Mainreducetion ratio	5.5T/4.11
Suspension	Front suspension/Leaf spring number	3+1
Suspension	Rear suspension/Leaf spring number	6+7
Brake system	Service brake	Drum pneumatic braking
	Parking brake	Central drum brake
	Auxiliary brake	Engine exhaust brake
Wheels and tyre size		6+1(7.00R16)

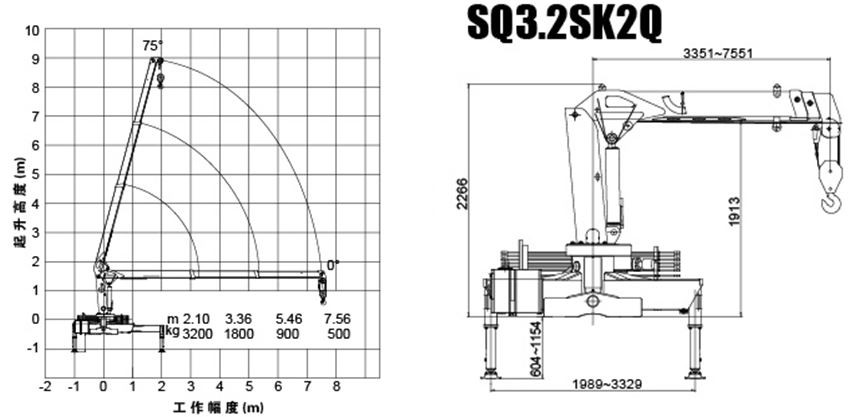

Technical parameters of truck mounted crane

Crane requirements	Type/Position	Straight arm/front
	crane	SQ3.2SK2Q
	Rotation angle	360°Full rotation
Subframe	Material/plate thickness	Longitudinal beam :Q345/10mm Beam: Q345/8mm
Cargo box	size	41702100400mm
